# Observing Kerberos with Wireshark

Active Directory security notes for Observing Kerberos with Wireshark, covering enumeration, Kerberos, credentials, ACL abuse, lateral movement, exploitation workflow, and validation steps.

### Observing an authentication

We open Wireshark, then connect with a user, for example:

```
user1
```

In Wireshark, you can filter Kerberos traffic with:

```
kerberos
```

We then observe the exchanges:

```bash
AS-REQ
AS-REP
TGS-REQ
TGS-REP
```

<figure><img src="https://131707722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-90df44f66d6cbc4719e40f3d26cd2b2673f97392%2F%7BBB1E1E17-1E72-4CFA-9A55-5C93C28496AC%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

### Example with access to a share without permissions

From `user2`, we try to access an administrative share:

```
cd //WS01/C$
```

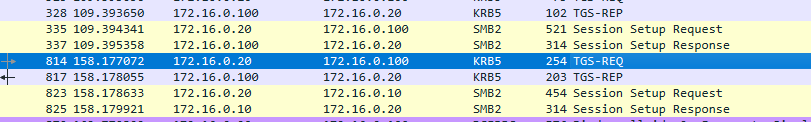

In Wireshark, we can observe:

```
TGS-REQ
TGS-REP
SMB Access Denied
```

<figure><img src="https://131707722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-353387bfc535308105528a3ae872608bf3f57671%2F%7BBEAA2E5F-3867-4FF0-8690-E2E5E50AF4F8%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

This means that:

1. the user queries a service ticket;
2. the KDC issues the ticket;
3. the ticket is presented to the server;
4. the server refuses access because of SMB or NTFS permissions.

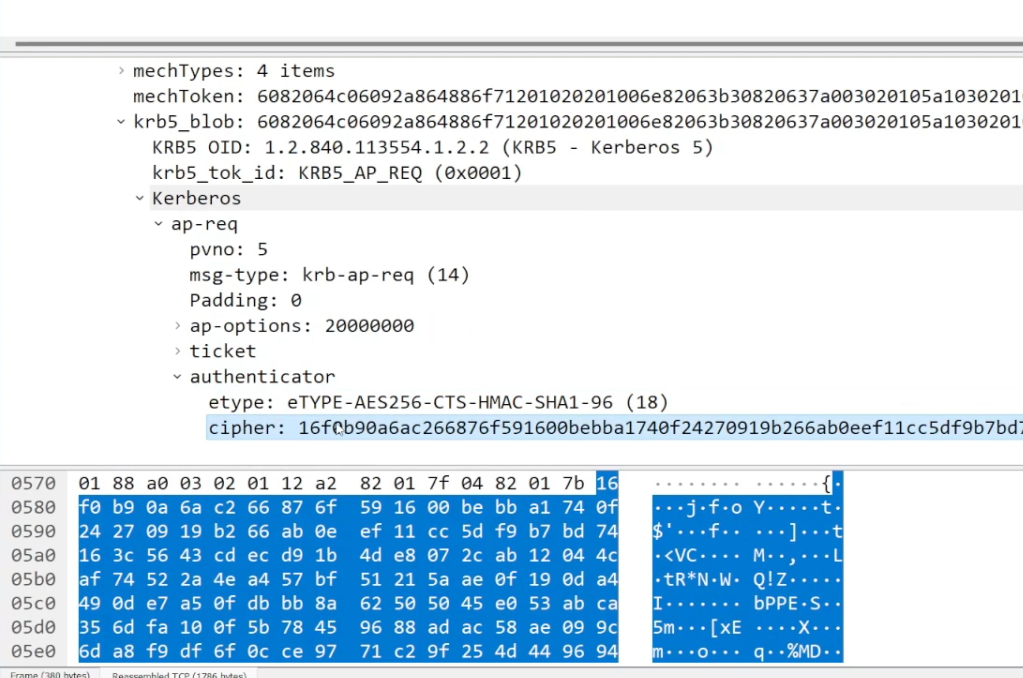

### Ticket and Authenticator

When accessing a service, the client generally sends:

* a service ticket;
* an authenticator.

The ticket proves that the KDC authorized access to the service.

The authenticator proves that the client is indeed the one using the ticket.

<figure><img src="https://131707722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-48cdc3fab929a2114c6b35cc7d41f53cdb9cd9f0%2F%7B1F228000-B616-47CB-B34B-20A5DB584B21%7D.png?alt=media" alt=""><figcaption></figcaption></figure>


---
