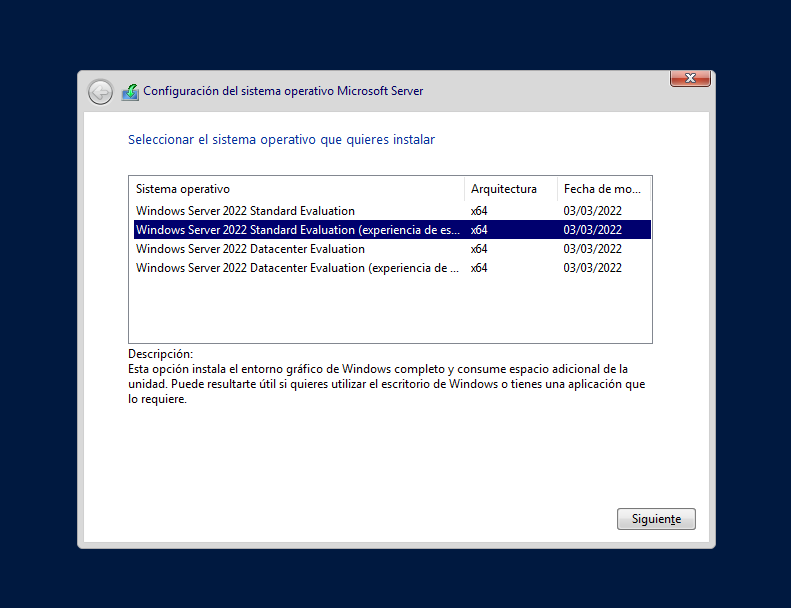

> For the complete documentation index, see [llms.txt](https://hacking-notes.jord4n.pro/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://hacking-notes.jord4n.pro/active-directory/lab-setup.md). # Active Directory Lab Active Directory security notes for Active Directory Lab, covering enumeration, Kerberos, credentials, ACL abuse, lateral movement, exploitation workflow, and validation steps. ## Installation and configuration of the domain controller (DC) #### 1. Windows Server Installation * Download **Windows Server 2022** ISO {% embed url="" %} * Select **Windows Server 2022 Standard (Evaluation)**

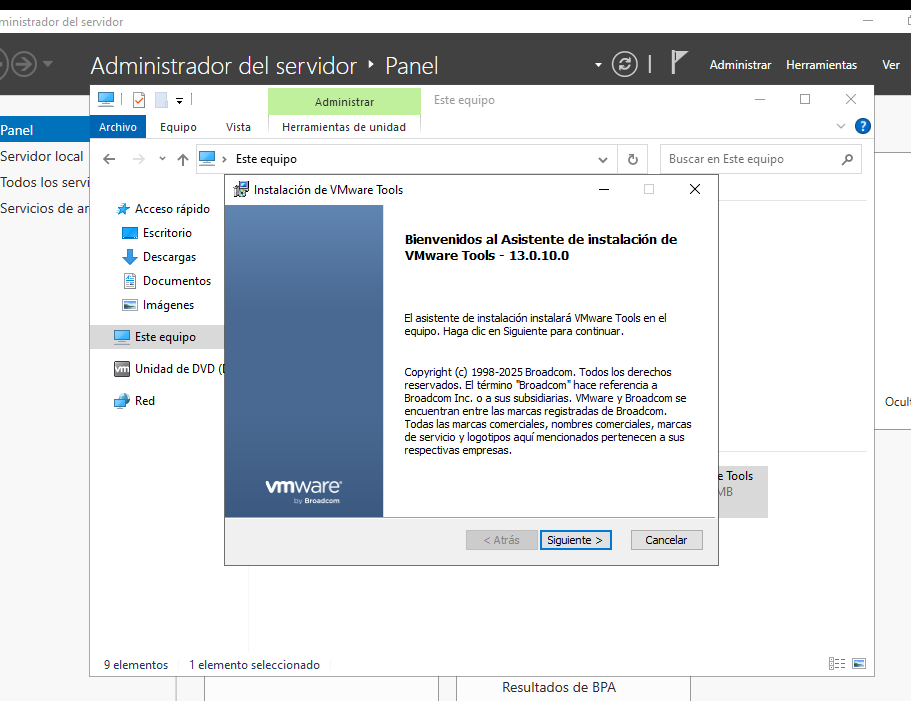

* Install the system on a virtual machine * Installer **VMware Tools**

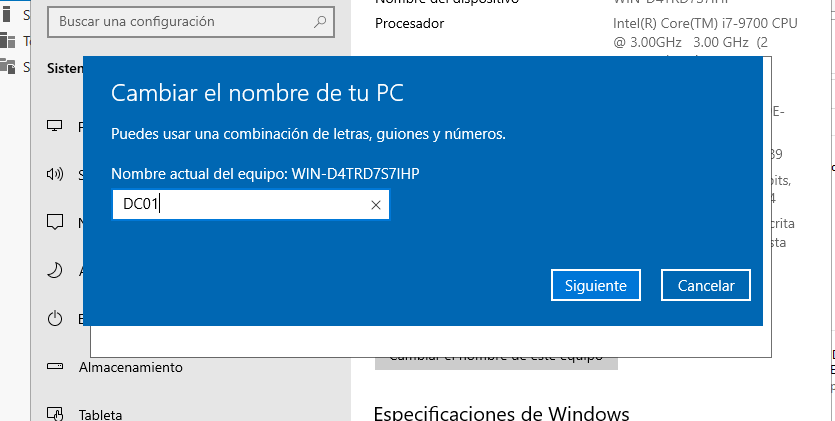

#### 2. Initial setup * Edit **machine name**

* Configure a **static IP address**

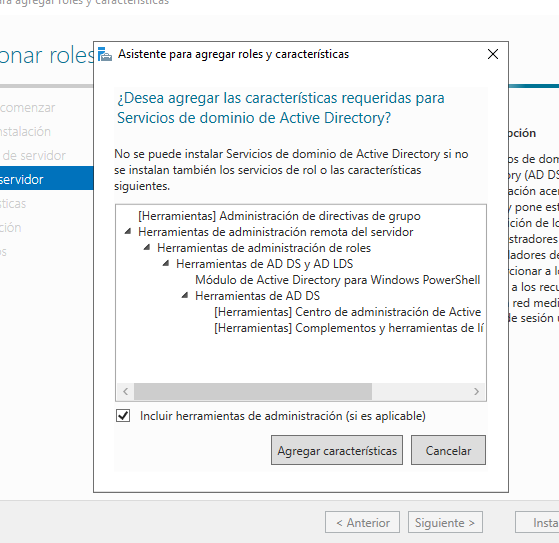

#### 3. Installing roles * Install the role: * **Active Directory Domain Services (AD DS)**

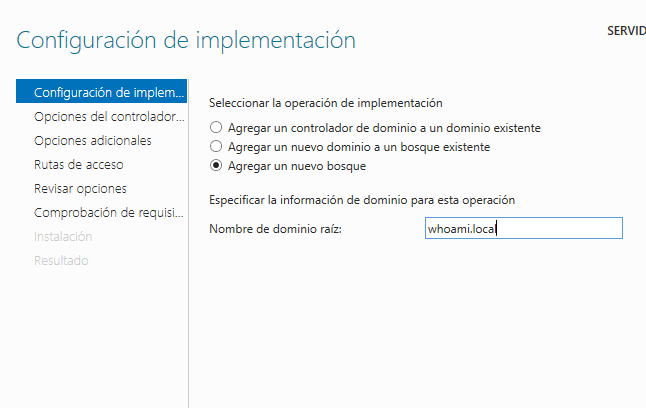

#### 4. Promotion to domain controller * Create a **new forest** * Domain name: `whoami.local`

* Restart the virtual machine after configuration ## Installing Windows 10 machines in the domain {% embed url="" %} #### 1. Creation of machines * Create two machines: * **WS01** * **WS02**

#### 2. Machine configuration * Change the computer names: * WS01 * WS02

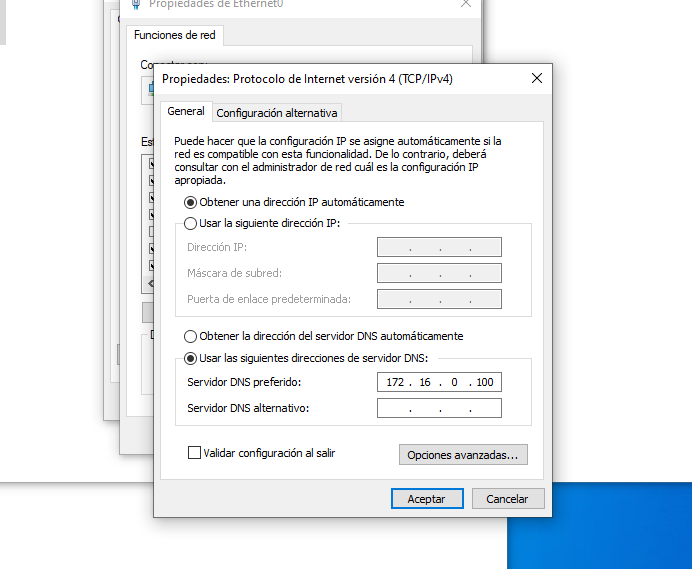

Configure the IP address with DNS pointing to the domain controller: * DNS : `172.16.0.100`

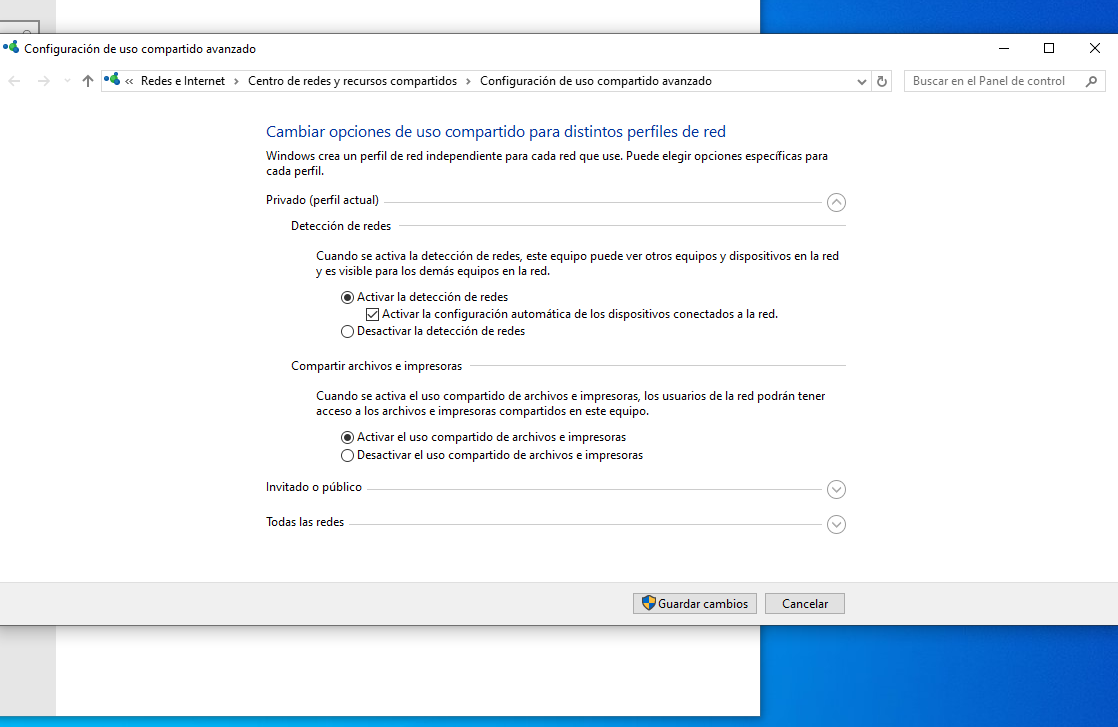

* Change **advanced sharing** settings (network and discovery)

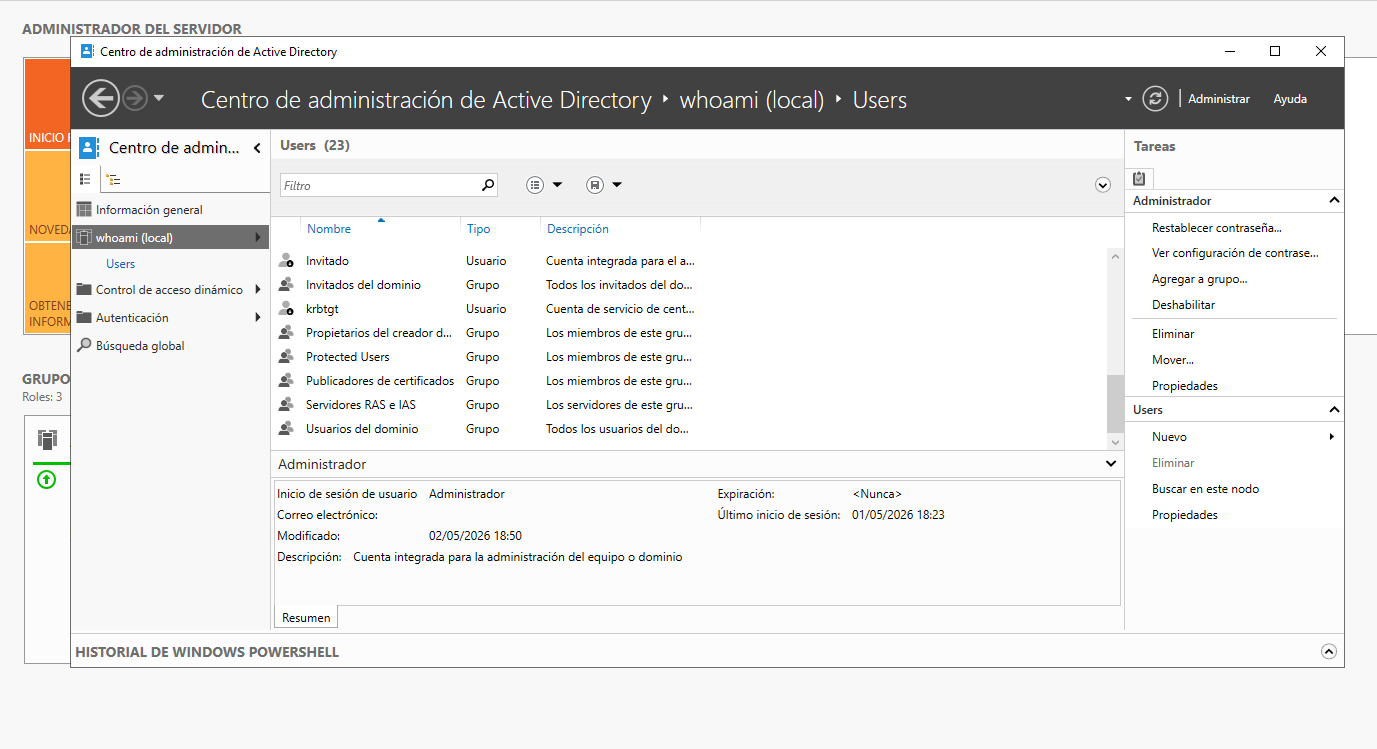

#### 3. Creation of users In the **Active Directory Administration Center**:

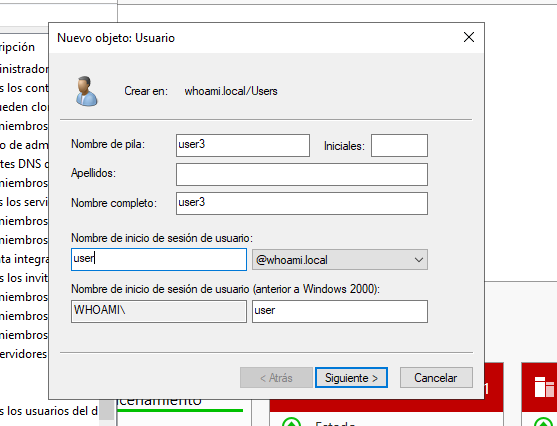

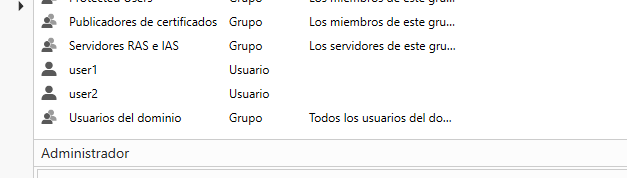

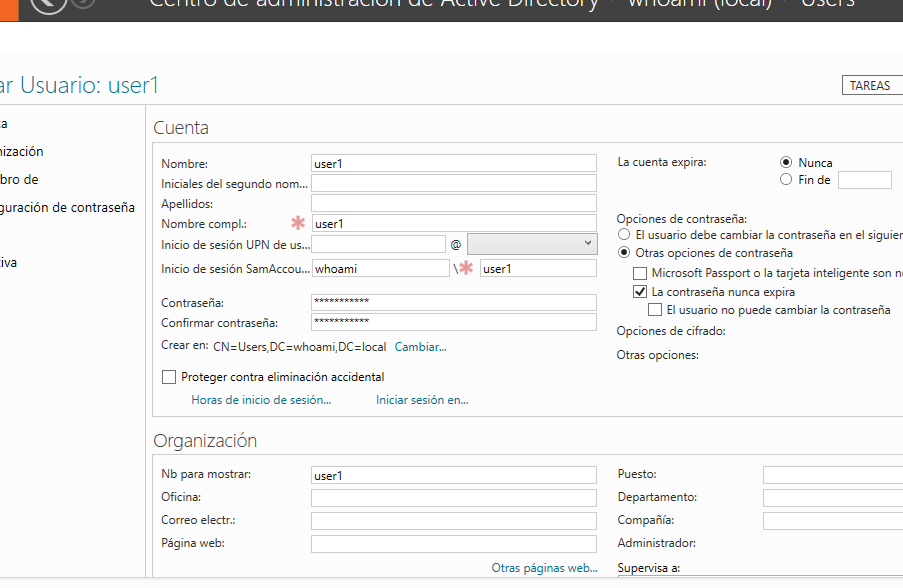

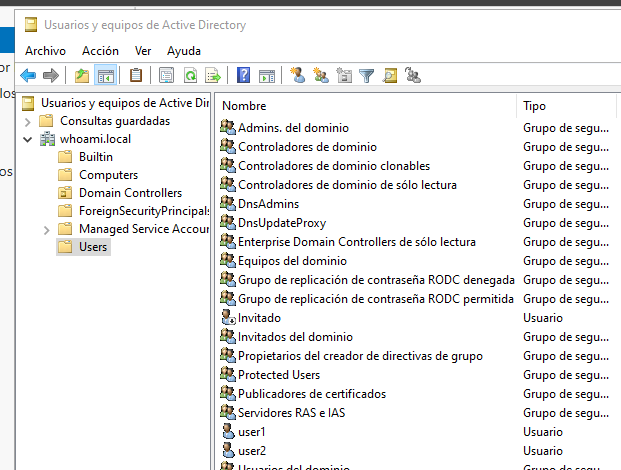

Create two users: * user1 * user2

#### 4. Domain Integration * Go to: **Professional or educational access**

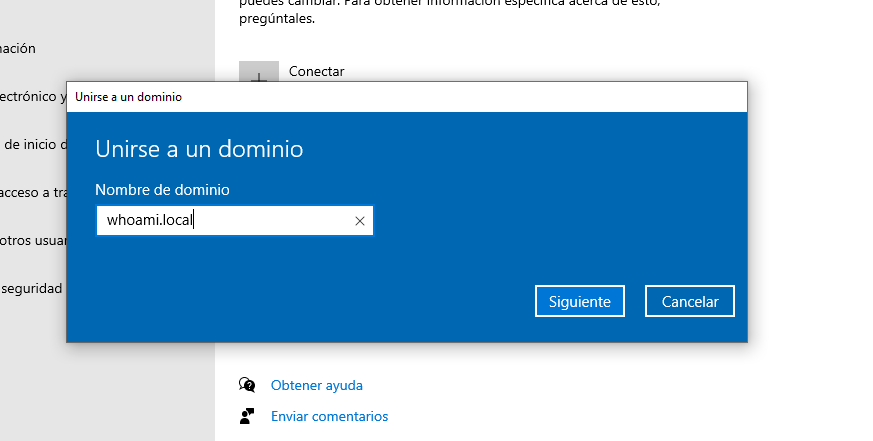

* Choose: **Connect to a domain** * Enter domain name: `whoami.local` * Authenticate with a domain account

## Active Directory Features: Users, Groups and OUs In **Active Directory Users and Computers**, you can manage and modify the configuration of the forest and objects.

#### User and OU management

#### Example: creation of a department

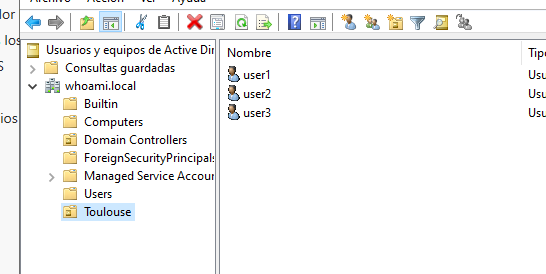

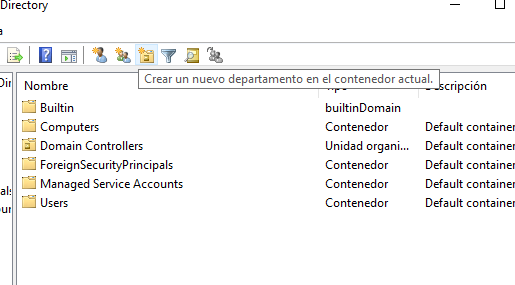

Create an **organizational unit (OU)**, for example: * *Toulouse* * Move existing users into this OU to organize the structure.

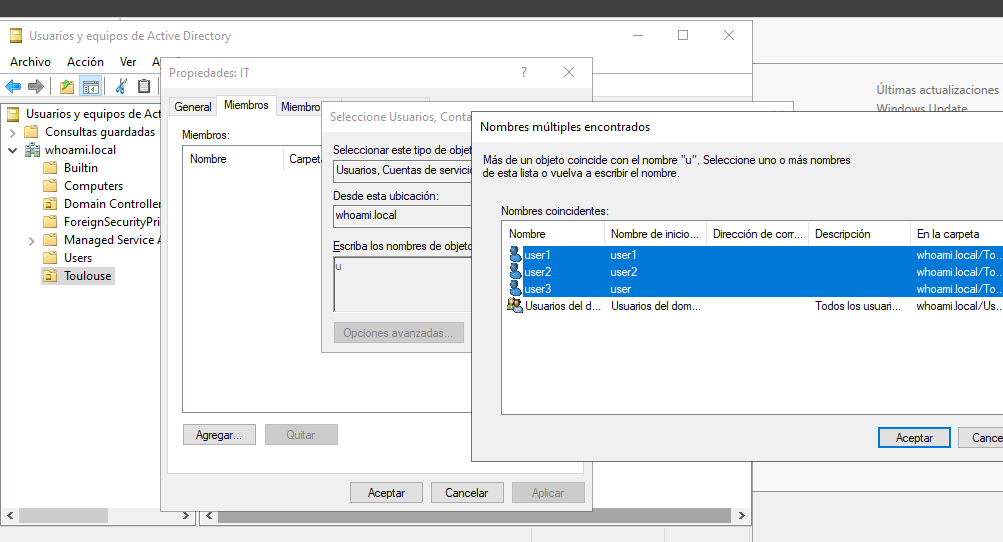

#### Group management * Create groups, for example: * **IT** Add users to the group.

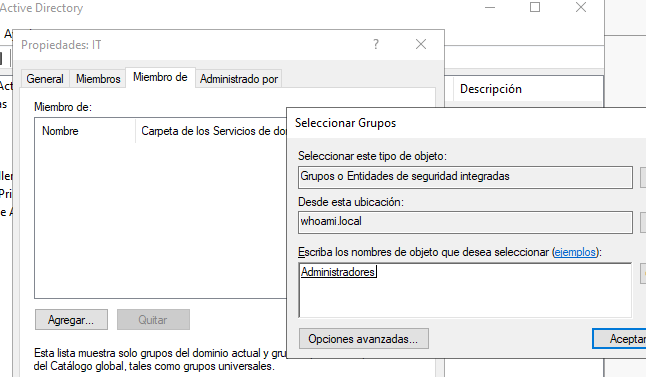

A group can be **a member of another group**. * Example: * The *IT* group can be a member of the *Administrators* group The users then inherit the **permissions** of the parent group.

#### GPO Management (Group Policy Objects) **GPO** allows you to manage configuration policies.

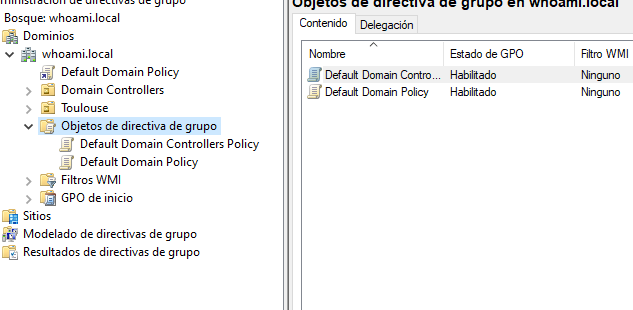

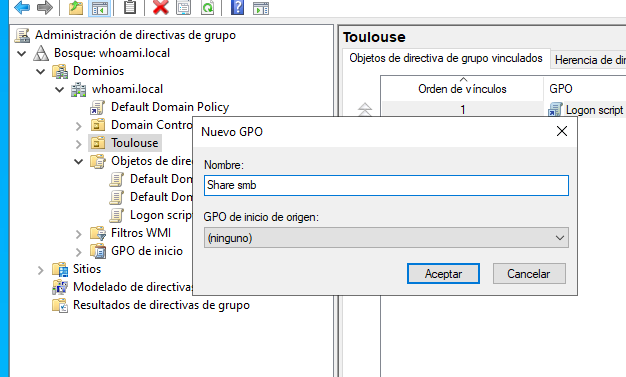

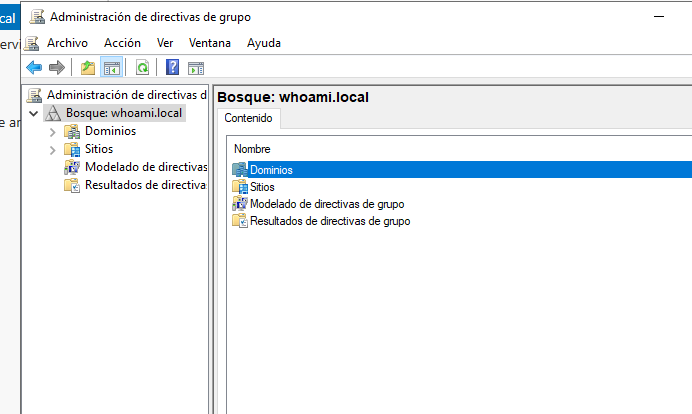

#### Creating a GPO * Go to: **Group Policy Management**

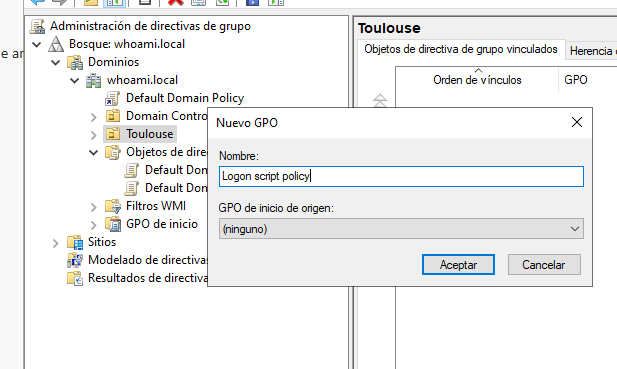

* Click the OU, for example **Toulouse** * Create a new **GPO**

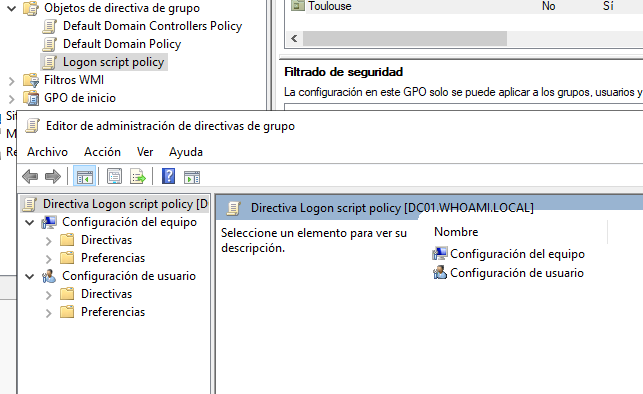

* Edit the policy

#### Types of policies GPOs can be applied according to: * **User** * **Ordinateur**

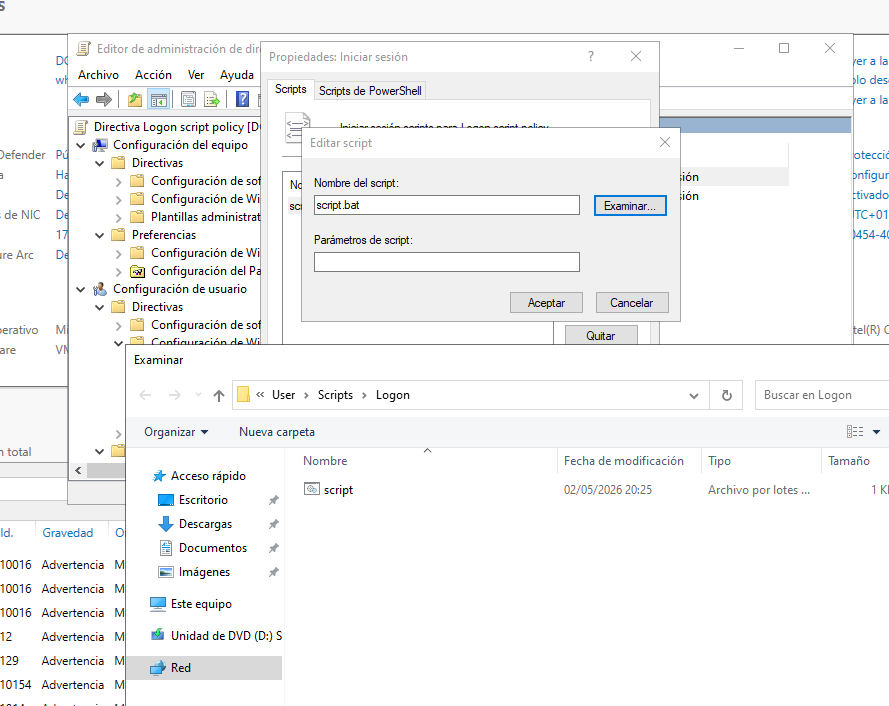

#### Example: run a script at session start * Go to:/ **User Configuration → Windows Settings → Scripts (Logon)** * Create a `script.bat` file with the contents {% code overflow="wrap" %} ```bash calc.exe ``` {% endcode %}

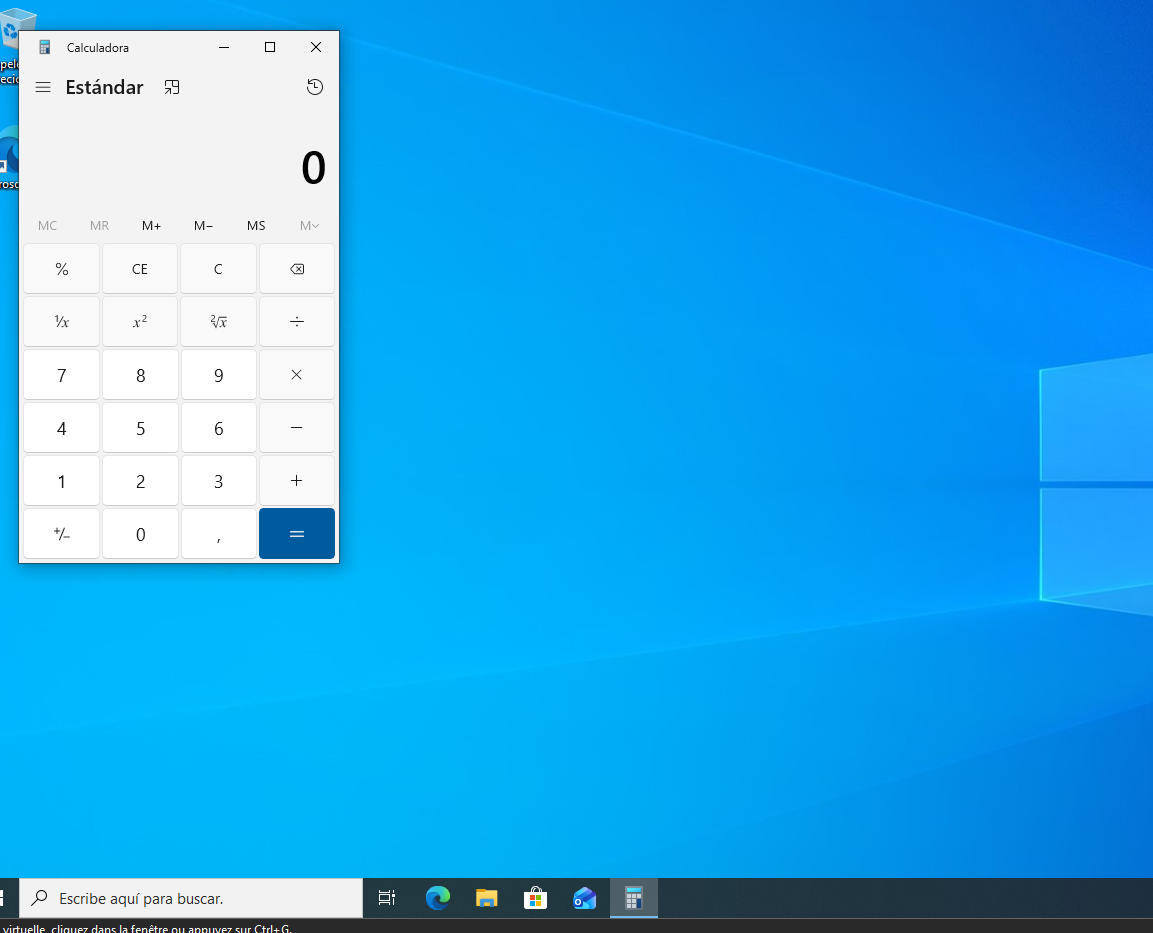

Result: the calculator opens when the user logs in.

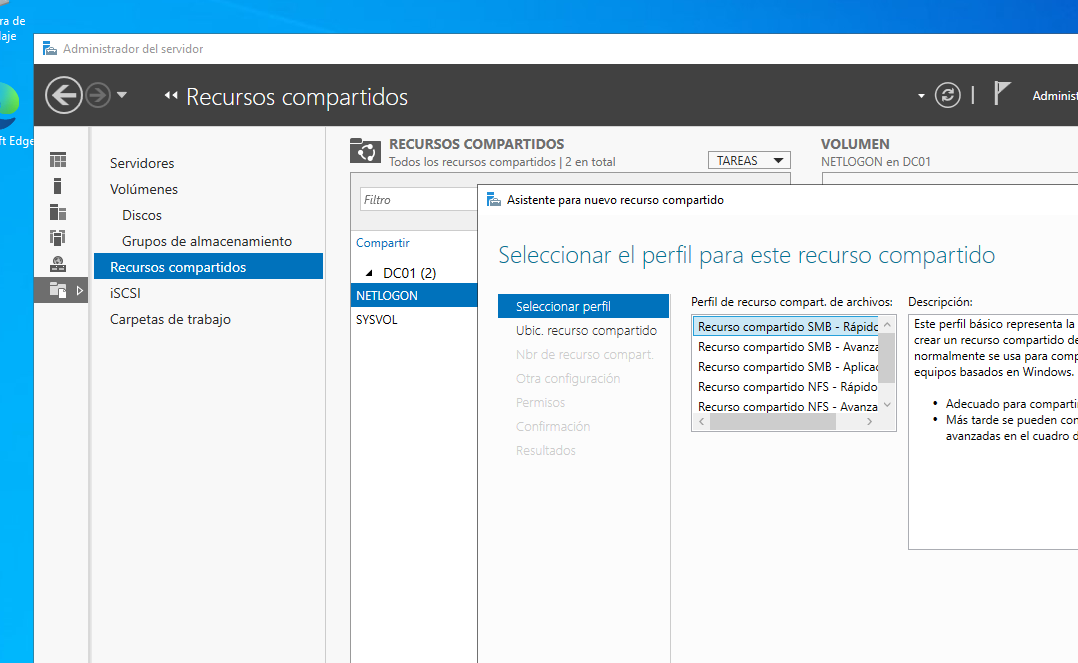

#### Shared Resources (SMB) Creating a share * Go to:/ **Server Manager → File and Storage Services → Shares**

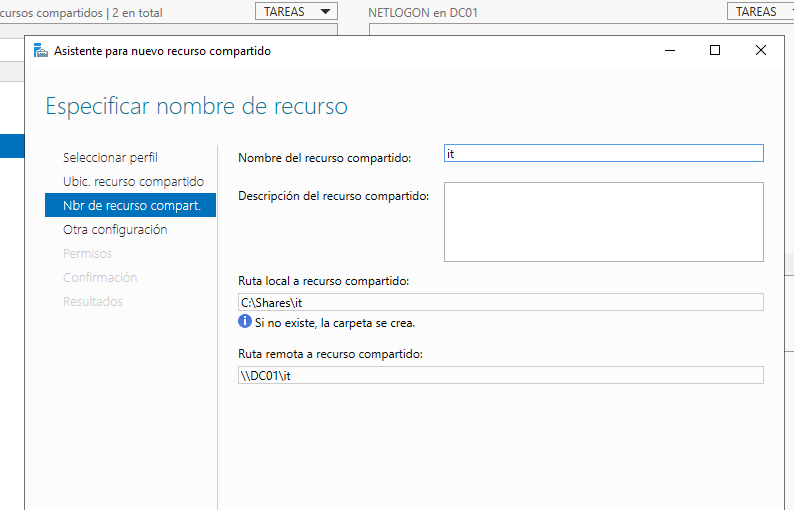

* Create a new SMB share, for example: * Local folder: `C:\Shares\it` * Network path: `//DC01/it`

#### Automatic mounting via GPO To automatically connect the share:

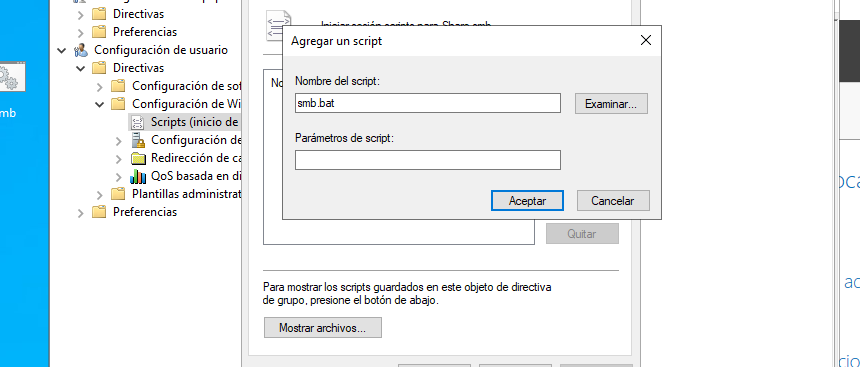

* Use a script: {% code overflow="wrap" %} ```bash net use t: //172.16.0.100/it ``` {% endcode %}

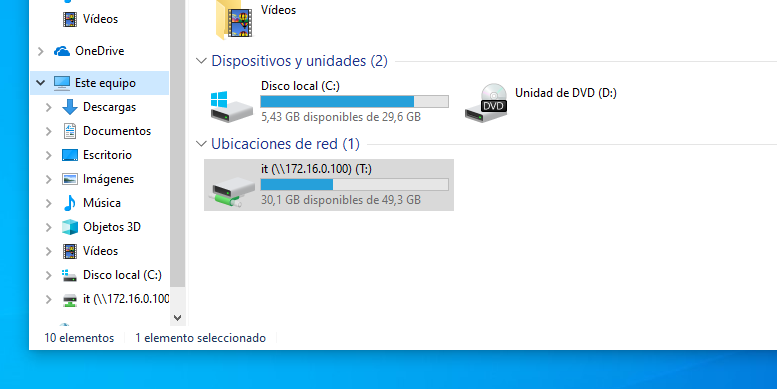

Result: the network drive automatically appears on the workstations.

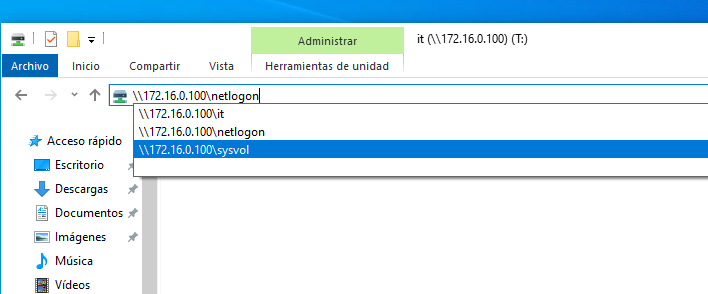

#### Point of vigilance (security) Pay attention to these folders: * **NETLOGON** * **SYSVOL**
