# Manipulation de la négociation WebSocket

Notes sur la manipulation de la négociation WebSocket pour les laboratoires de la PortSwigger Web Security Academy, incluant le workflow d’exploitation, les tests de payloads, la validation dans Burp Suite et le contexte de remédiation.

### Manipulation du handshake WebSocket pour exploiter des vulnérabilités

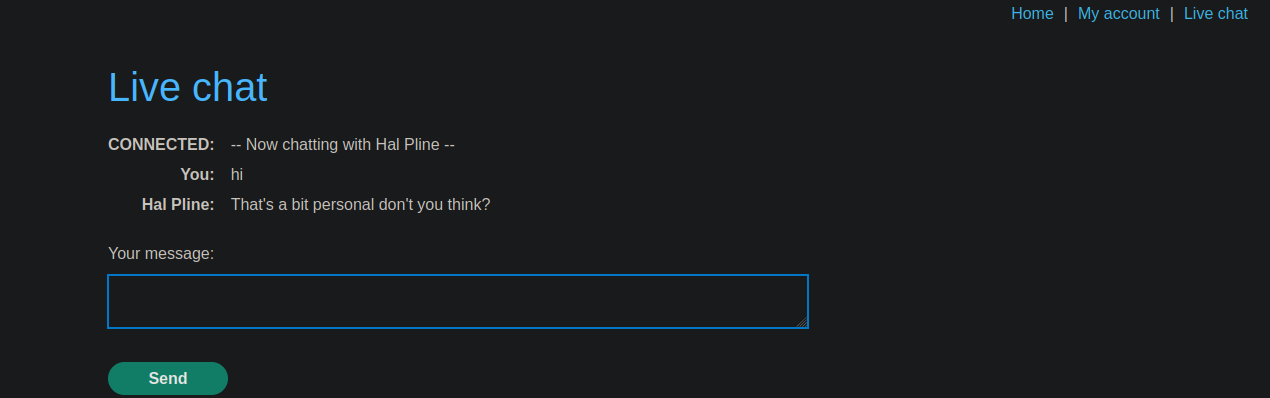

Cette boutique en ligne dispose d’une fonctionnalité de chat en temps réel basée sur **WebSockets**. / Un filtre XSS est présent : il est agressif, mais présente des failles exploitables.

Un champ de chat permet d’envoyer des messages qui s’affichent en temps réel du côté de l’agent de support.

<figure><img src="https://3840167291-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-7e167899ebc6f6893c92a84b8deca11ad45207f5%2F%7BBD656235-BB53-498B-9FDC-C64F9A2A7784%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

#### Test initial du filtre XSS

Lors de l’envoi du payload suivant dans le chat :

```javascript
<img src=0 onerror=alert(0)>
```

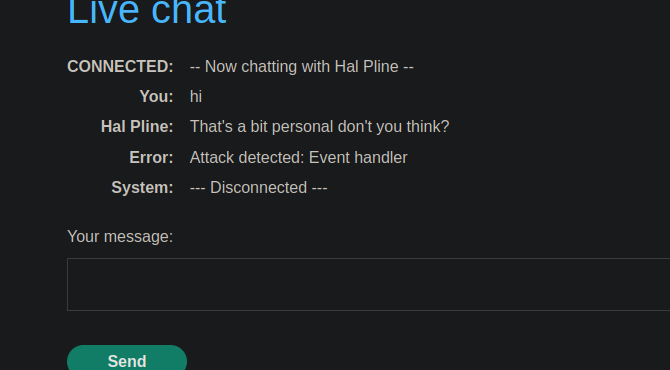

Le serveur répond avec le message :

* **Attaque détectée : gestionnaire d’événements**
* La connexion WebSocket est immédiatement **fermée**.

<figure><img src="https://3840167291-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-be096d21e9bfaabb72aa5560a09d24d9cec94b57%2F%7B880823DF-F5A4-4802-9978-933D5A8B289D%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

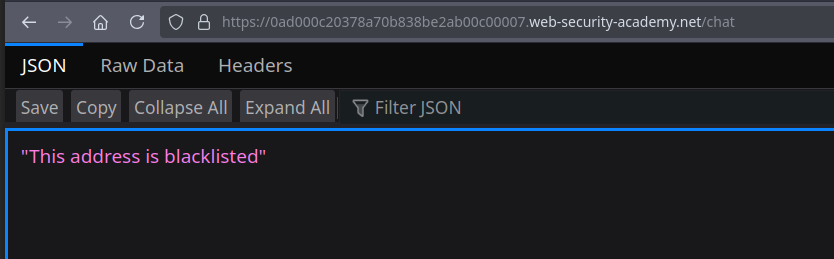

Après avoir simplement rechargé la page, le message suivant apparaît :

* **Cette adresse est sur liste noire**

L’adresse IP est donc temporairement bloquée.

<figure><img src="https://3840167291-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-2e33bd956aec874d584e04f7ace1a80422569d98%2F%7B2816FFE2-3D7D-4A5E-B5D4-067DBDF33F7A%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

#### Contournement de la mise sur liste noire

Ajout de l’en-tête HTTP suivant lors de l’établissement du handshake WebSocket :

```http
X-Forwarded-For : 0.0.0.0
```

<figure><img src="https://3840167291-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-2fb005e0471d574c87fc426d0dee90538d45a100%2F%7B945882E2-E46A-4509-9A6D-D108717481CB%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

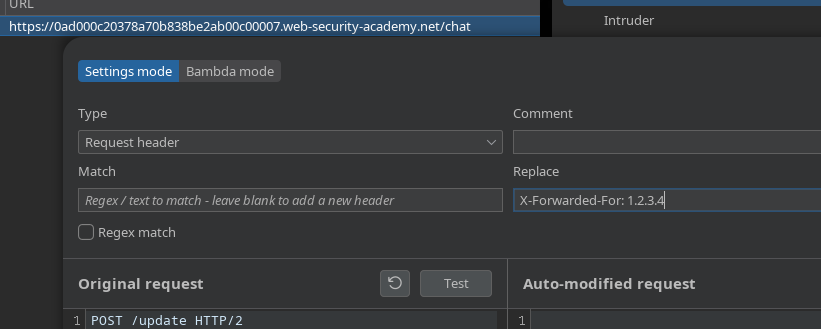

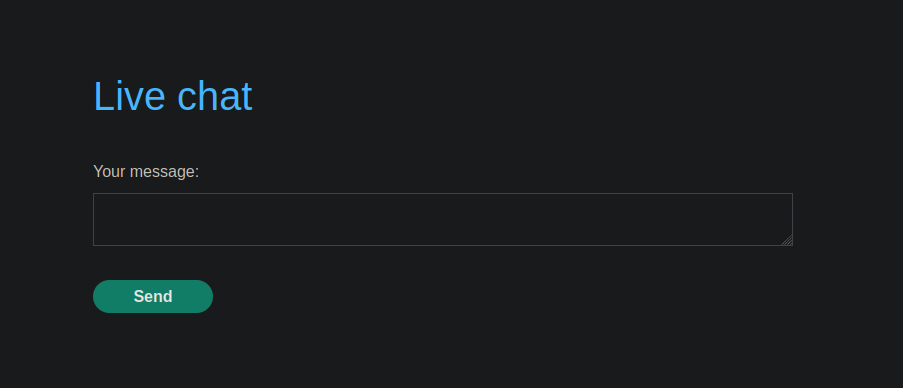

Le serveur accepte à nouveau la connexion. / Pour éviter d’avoir à l’ajouter manuellement à chaque fois, cet en-tête est configuré **de façon permanente dans le proxy**.

<figure><img src="https://3840167291-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-952feb57fb13e416a58916a89b9fa5fa47a45a64%2F%7BF1745B76-CF31-4A2D-A7F3-676136BE4FD5%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

#### Contournement du filtre XSS

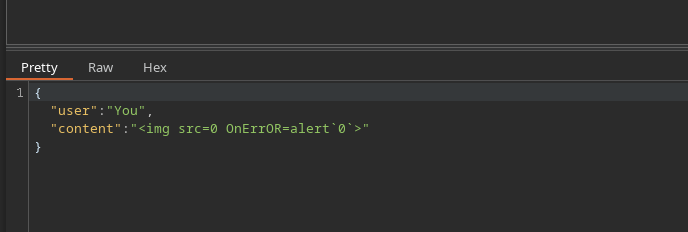

Une fois la connexion rétablie, le payload est légèrement modifié pour contourner le filtre :

```javascript
<img src=0 OnErrOR=alert`0`>
```

<figure><img src="https://3840167291-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-fc0cb7c6ea20369b6bb250a51f13b799dc90ba1f%2F%7B0C6DB5F8-6777-4263-AAFA-086A9424FF9B%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

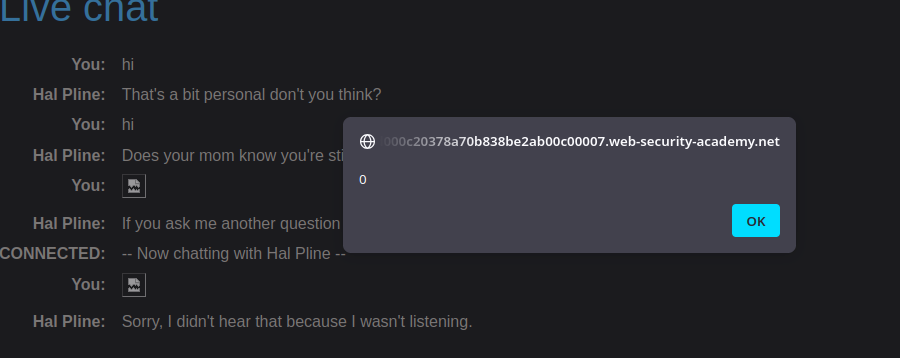

Ce changement de retour à la ligne et de syntaxe permet de contourner la détection.

<figure><img src="https://3840167291-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-516c9a384c0d6a8043d8bc11a7c924d6e6e825de%2F%7B46B6F48D-4B77-4AAC-A4B4-F12D6FD070A6%7D.png?alt=media" alt=""><figcaption></figcaption></figure>


---
