# WebSocket Message Manipulation

WebSocket Message Manipulation notes for PortSwigger Web Security Academy labs, including exploitation workflow, payload testing, Burp Suite validation, and remediation context.

### Manipulating WebSocket Messages to Exploit Vulnerabilities

This online shop has a real-time **chat feature** implemented using **WebSockets**. / Messages sent by the user are displayed instantly in the browser of a **support agent**. / The lab's goal is to **start a `alert()`** popup in the agent browser by manipulating a WebSocket message.

A chat field is available on the app.

<figure><img src="https://131707722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-8a1408cc26bd95a22c440833e76f726023c18500%2F%7B4BB30044-5EE6-47A0-B6F3-F645051D0B20%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://131707722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-70edba498d5cac096e2c547c81053d56c9f57b51%2F%7B36CF1F66-78CE-403E-A5F0-FF2734D3448E%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

By inspecting traffic, messages are sent via WebSocket as follows:

```json
{
    "user":"You",
    "content":"hi"
}
```

**Filtering test**

Try to send the following payload via the chat:

```javascript
<script>alert(0)</script>
```

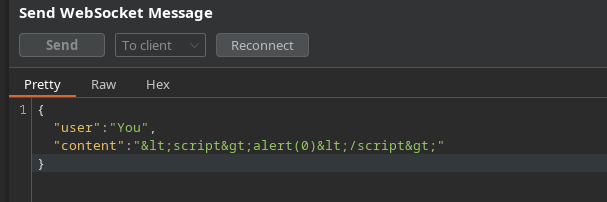

Result observed:/ The content is \*\* escaped on the server side\*\* and interpreted as text:

```javascript
&lt;script&gt;alert(0)&lt;/script&gt;
```

<figure><img src="https://131707722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-998def77cef804e25c4d01b95be3f538aa45ba77%2F%7B25FE3FD3-7F35-4E9A-88AF-375EB6C95410%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

This indicates the presence of basic filtering against `<script>` tags.

**Contouring filtering**

A WebSocket message containing the following payload is then sent manually:

```http
<img src=0 onerror=alert(0)>
```

The message is **forwarded directly** via the WebSocket request, without going through the usual interface controls.

<figure><img src="https://131707722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-8e265e5c6749384a69f9ab3bc8f9c4960a399ec9%2F%7BA183AEF0-146B-4DA5-A143-C3FA4387074B%7D.png?alt=media" alt=""><figcaption></figcaption></figure>

When the support agent receives the message, the browser interprets the `onerror` attribute, which triggers:

* execution of `alert(0)`
* The appearance of a **popup window** in the agent browser

<figure><img src="https://131707722-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2Fl4EVJpcOrsgjSGsLI7p2%2Fuploads%2Fgit-blob-5b7ccce08c52c64fb935796e485d5b78d3df2097%2F%7B772C48AA-30F3-46DE-AF8D-DBB33B9C5136%7D.png?alt=media" alt=""><figcaption></figcaption></figure>


---
